Topect VoT72-200A 高温试验箱 (72L, +20～200℃, 2kW)
制造商: Topect Model: VoT72-200A - 联系

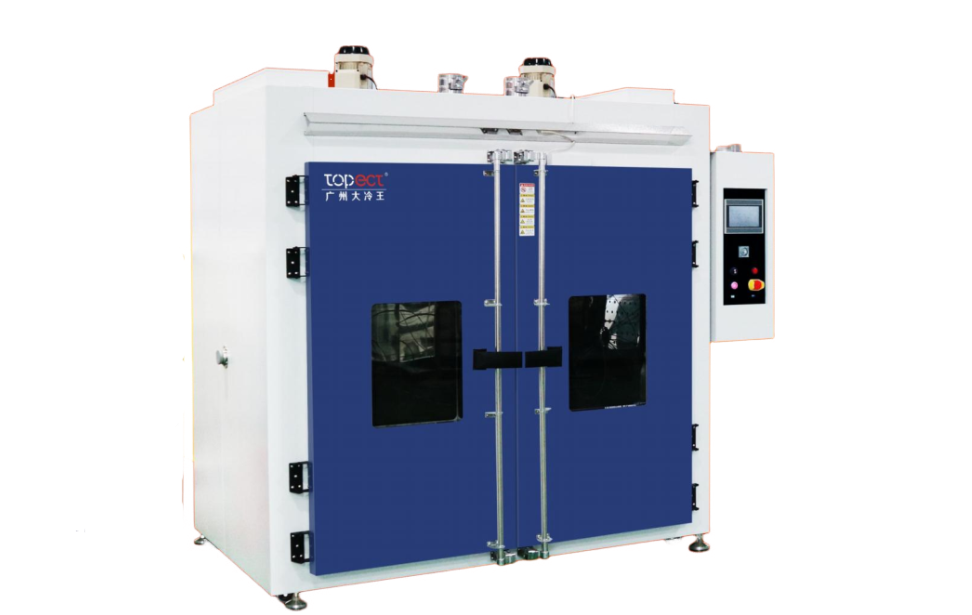

Product images are for illustrative purposes only.
Internal Volume (L): 72
Inner Dimension (mm)
W: 450
H: 400
D: 400
Outer Dimension (mm)
W: 700
H: 960
D: 540
Temperature Range (℃) : Ambient temperature +20～200℃
Temperature Fluctuation
≤100℃: ±0.2℃
≤200℃: ±0.2℃
≤300℃ -
Temperature Deviation
≤100℃: ±1.5℃
≤200℃: ±2.0℃
≤300℃: -
Temperature Rise Time (min): (Ambient temperature +20～200℃): ≤40/min
Temperature Regulation Mode: Forced air circulation heat transfer mode & internal cooling system
Operating Environment
Temperature: (5～36)℃
Humidity: (30～85)%RH
Pressure: (86～106) kPa
Power Supply(V)
AC voltage 380V±38V
Frequency 50Hz±0.5Hz
3-phase 4-wire & earthing protection
Maximum Current (A): 3
Power (kW): 2
Weight (kg): 95
Photo for illustration.
Controller: Imported instrument
Running mode: Constant value/programming control
Display accuracy: Temperature 0.1℃
Temperature input: K-type thermocouple
Control mode: PID control
Communication mode (Optional): RS-232/RS-485
