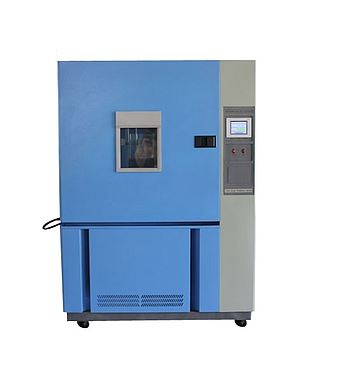

Symor TGDJ-50-B 温度试验箱 (-40°C~+150°C)

Interior Dimension W*D*H (mm):  350×320×450

Exterior Dimension W*D*H(mm): 950×950×1400

Temp. Range: -40°C~+150°C

Temp. Fluctuation: ≤±0.5°C

Temp. Uniformity: ≤2°C

Heating Rate: 2~3°C/min

Cooling Rate: 0.7~1°C/min

Exterior Material: Reinforced Steel plate with electrostatic spraying

Interior Material: Anti-corrosion SUS number 304 mirror stainless steel

Insulation: Superfine fiberglass wool / polyurethane foam

Programmable Controller: 7'' Japan original imported UNIQUE(UMC) touch screen controller

Circulation System: low-noise, high temperature resistant motors, single cycle, long axis

and stainless steel multi-leaf type centrifuge fan

Heating system: NiCr heater, independent system

Refrigeration system: France "TECUMSEH" Hermetic Refrigeration Compressors,

Unit cooling mode / Dual cooling mode (air-cooled), Refrigerant R404A/R23

Protection Devices: Leakage and outage protection, compressor over-pressure, overheat,

over-current protection, overload fusing protection, audio, signal alarm

Power supply: AC220V/380V±10%, 50Hz/60Hz
