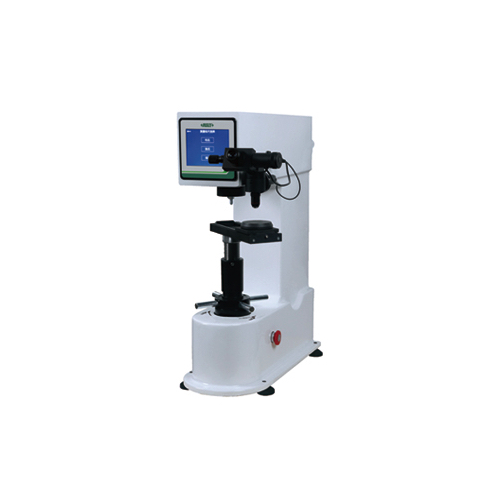

INSIZE HDT-BRV330 电动数字洛氏/布氏/维氏硬度计 (2451.6N, 1471N, 980.7N)

Test Force:

Brinell: 306.5N (31.25kg), 612.9N (62.5kg), 1226N (125kg), 1839N (187.5kg), 980.8N (100kg), 2451.6N (250kg)

Rockwell: 588N (60kg), 980N (100kg), 1471N (150kg)

Vickers: 49.03N (5kg), 98.07N (10kg), 196.1N (20kg), 294.2N (30kg), 490.3N (50kg), 980.7N (100kg)

Hardness Scale:

Brinell: HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW10/100, HBW10/250

Rockwell: HRA, HRB, HRC, HRD, HRF, HRG

Vickers: HV3, HV5, HV10, HV20, HV30, HV50, HV100

Conversion Scale: HRA, HRB, HRC, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HB, HV, HK

Range:

Brinell: 5-650HBW

Rockwell: 20-88HRA, 20-100HRB, 20-70HRC

Vickers: 10-2900HV

Stage Lifting: Manual

Load Control: Automatic (Load/Dwell/Unload)

Eyepiece: 10X

Objective:

2.5X (included, for Brinell)

5X (included, for Vickers)

10X (optional, for Vickers)

Resolution:

Brinell: 0.1HB

Rockwell: 0.1HR

Vickers: 0.1HV

Load Dwell Time: 0~99 seconds (adjustable)

Max. Testing Width: 160mm

Max. Workpiece Height:

Brinell: 165mm

Rockwell: 180mm

Vickers: 165mm

Power Supply: 220V, 50/60Hz

Dimension: 550×235×720mm

Weight: 80kg

STANDARD DELIVERY

Main Unit: 1 pc

Diamond Rockwell Indenter: 1 pc

Diamond Vickers Indenter: 1 pc

Ø2.5mm Ball Indenter: 1 pc

Ø5mm Ball Indenter: 1 pc

Ø1.5875 Carbide Ball Indenter: 1 pc

Ø150mm Flat Anvil: 1 pc

Ø60mm Flat Anvil: 1 pc

V-Type Anvil: 1 pc

Skateboard Stage: 1 pc

Internal Lighting Bulb: 1 pc

External Lighting Bulb: 1 pc

Hardness Test Block HRC20~30: 1 pc

Hardness Test Block HRC60~70: 1 pc

Hardness Test Block HRB85~100: 1 pc

Hardness Test Block HBW2.5/187.5: 1 pc

Hardness Test Block HV30: 1 pc

Anti-Dust Cover: 1 pc
