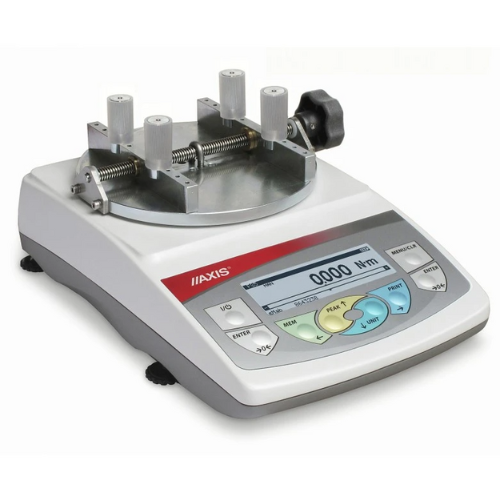

AXIS FSA10 扭矩计 (10Nm, 0.01Nm)
制造商: AXIS Model: FSA10 - 联系
Maximum force measured: 10Nm (~1kgfm)
Reading graduation: 0.01Nm
Accuracy: ±0.5% F.S.
Maximum overload: 150% F.S.
Operational temperature: -10 ÷ +40°C
Units: Nm, Ncm, kgfm, lbfin, gfm
Display: grafical LCD
Measurement speed: max 1000 measurements/s
Measuring functions: maximal value measurement, serial measurement, measurement in time
Measurements memory: RAM 6 400 measurements, microSD card slot; only FC: optional RAM memory expansion to 72000 measurements or 26000 with date+time
Interfaces: RS232C, USB, clock; options: trigger IN, transoptor OUT (for thr function)
Software: AXIS FM program
Power supply: internal accumulators NiMH: 4x1.2V 2700mAh + supply: ~230V 50Hz / 12V; 1.2A
Working time with accumulator: ~30h (~25h with backlighting)
Range of diameters: Ø20÷ Ø180mm
Dimensions: 345x236x160mm
Weight: 5.1kg
Cap torque testers FSA series are designed for measuring torque during opening jar, bottles etc..
Tester is equipped with a wide range clamp to measure variety of objects. Measurement processor enables to register maximal force torque needed for example to open a jar.
Torque measurement can be realized in both directions, measurement time course registration and graph is possible. Clamp has a solid, universal construction that enables adaptation and expansion. Thus FSA can be used in complex measurement systems.
Special functions:
- peak value measurement
- threshold comparision
- statistics
- measurement unit selection
