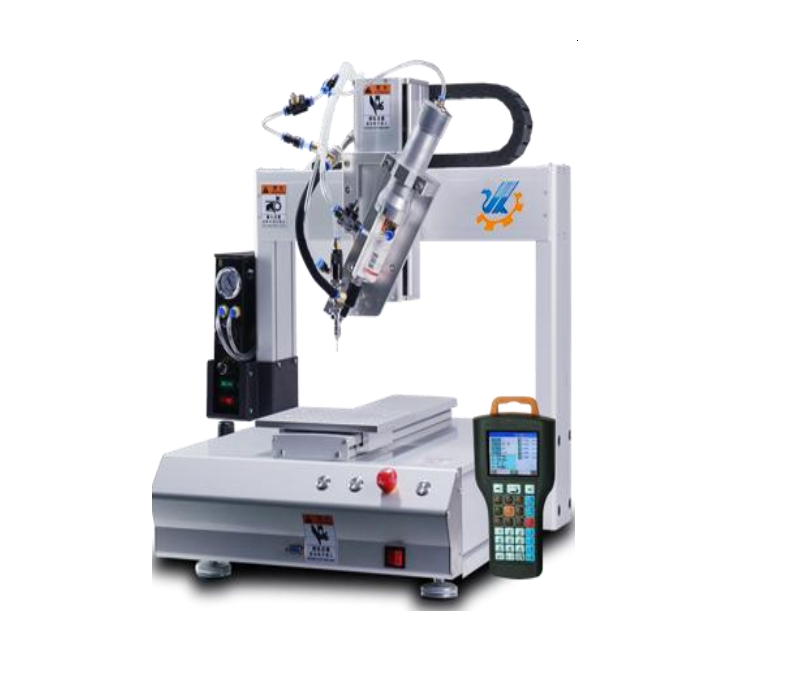

ZX Automation ZX-ABY331 Three-axis AB glue dispensing machine (5 lần/giây; 0.01ml; 300/300/100mm)

Dispensing range X/Y/Z (mm): 300/300/100

Programming method: teaching programming or graphic import

Moving graphic trajectory: point, straight line, arc, full circle, curve, polyline, spiral, ellipse

Dispensing head: 50ml AB glue flashlight + Y-type needle valve

Dispensing barrel: 50CC

Minimum discharge volume: 0.01ml

Dispensing frequency: 5 times/second

Maximum load: 10kg

Moving speed (mm/sec): 0--500

Repeat accuracy: ± 0.02 mm

Control method: motion control card + handheld box

Number of program records: 100 groups

Display method: LCD teaching box

Input power: full voltage AC110V ~ 220V

External control interface: RS232
