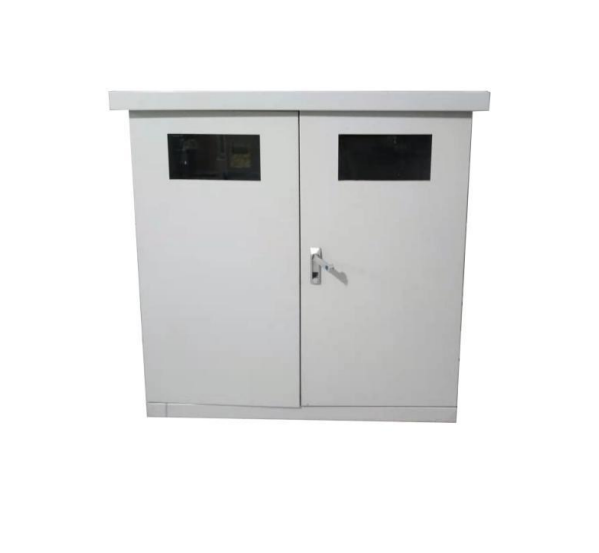

ZuoYeal ZY200SQ Extraction Type Laser Gas Analyzer (NH3; HCL; HF)

Performance Parameter

Gas:  Measuring range | Resolution | Repeatability | Linearity | Response time | Drift

NH3: 0-100mg/m3 | 0.1ppm | ≤1%FS | ≤1%FS | ≤15S | ≤±1%FS

HCL: 0-100/300mg/m3 | 1mg/m3 | ≤1%FS | ≤1%FS | ≤15S | ≤±1%FS

HF: 0-100/300mg/m3 | 1mg/m3 | ≤1%FS | ≤1%FS | ≤15S  | ≤±1%FS

Functional Parameters

Preheat : 30min

Power Supply: AC220V/3KW

Digital output: RS232/485

Analog output : 4-20mA maximum load 900 Ω

Environmental Parameters

Measuring Optical path: 0.5-0.9m

Sampling flow: ≤3L/min

Sample gas temperature: ≤ 300 ℃

Ambient temperature : -20~50℃

Sample gas pressure: Atmosphericpressure ±5kPa

Sampling method: Extraction Type

Size: 330（W）×1150（L）×1560（H）mm

Weight:  120kg
