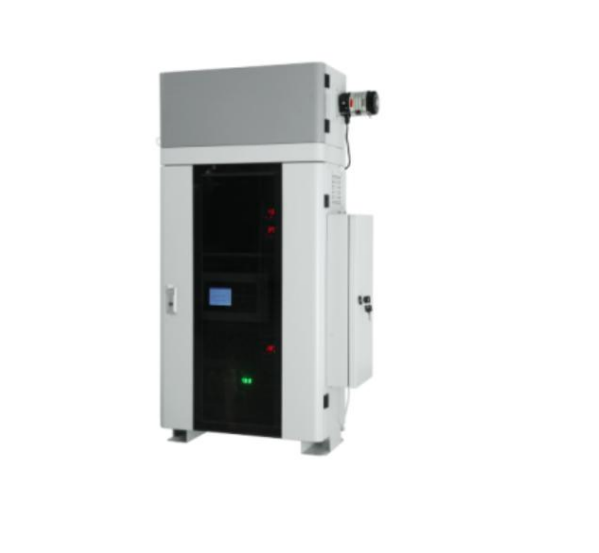

ZuoYeal ZY-500-NH3 Extraction Type UV Gas Analyzer (NH3: 0-10-1000ppm)

Performance Parameter

Gas : NH3

Measuring range :  0-10-1000ppm

Resolution : 0.01ppm

Repeatability : ≤1%FS

Linear error : ≤1%FS

Response time : ≤90S

Drift: ≤±1%FS

Functional Parameters

Preheat: 30min

Power Supply: AC220V/1.5KW

Digital output: RS232/485/4-20mA

Detection lower limit: 0.1ppm

Environmental Parameters

Measuring Optical path: 10m

Sample gas temperature: ≤ 300 ℃

Sample gas pressure: Atmospheric pressure ±5kPa

Sampling flow:  ≤1.5L/min

Ambient temperature: -20~50℃

Sampling method: Extraction Type

Size 600（W）×400（L）×1200（H）mm

Weight 100kg
