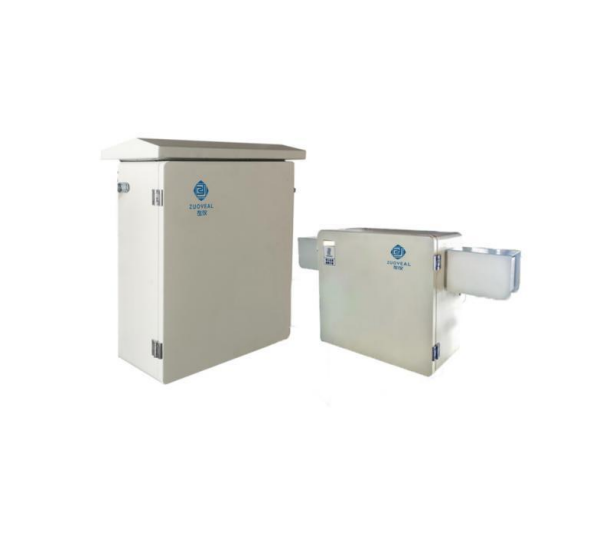

ZuoYeal ZY-200TD Extraction Type Laser Gas Analyzer (NH3; HCL; HF)

Performance Parameter

Gas: Measuring range | Resolution | Repeatability | Linearity | Response time | Drift

NH3: 0-20mg/m3 | 0.01mg/m3 | ≤1%FS | ≤1%FS | ≤10S | ≤±1%FS

HCL: 0-100mg/m3 | 0.1mg/m3 | ≤1%FS | ≤1%FS | ≤10S | ≤±1%FS

HF: 0-10mg/m3 | 0.01mg/m3 | ≤1%FS | ≤1%FS | ≤10S | ≤±1%FS

Functional Parameters

Preheat : 30min

Power Supply : AC100-240V/47-63Hz 3KW

Digital output : RS232/485/4-20mA

Environmental Parameters

Measuring Optical path: 5-10m

Sample gas temperature: ≤ 800 ℃

Sample gas pressure : Atmospheric pressure ±5kPa

Sampling flow : ≤3L/min

Ambient temperature: -30~55℃

Sampling method: In situ extraction

Size : 630（W）×230（L）×630（H）mm

Weight: 50kg
