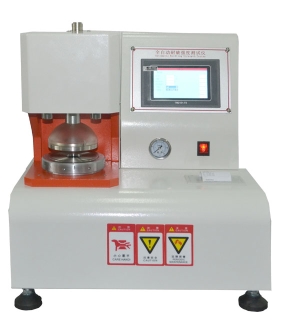

ZONHOW DZ-601 Bursting Strength Testing Machine

Bursting Strength Testing Machine (BST)

Paper Bursting Strength Tester is fit for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike,

valise, food, shoe, furniture etc, to test the bursting-resistance strength of paper box; it can also test cloth and synthetic leather. The GT-7013-ADP type of

bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer &

alert light automatically. Its Accuracy has promoted 20 times more than the traditionalgauge

Bursting strength range: 250~5600kPa

Indicating Method & Display: LCD

Resolution: 1 kPa

Accuracy: ±0.5%FS

Specimen Clamping Force: >690kpa

Clamp ring diameter: 31.5mm

Pressure speed: 170±10ml/min

Power: 1PH, AC220V, 50/60Hz
