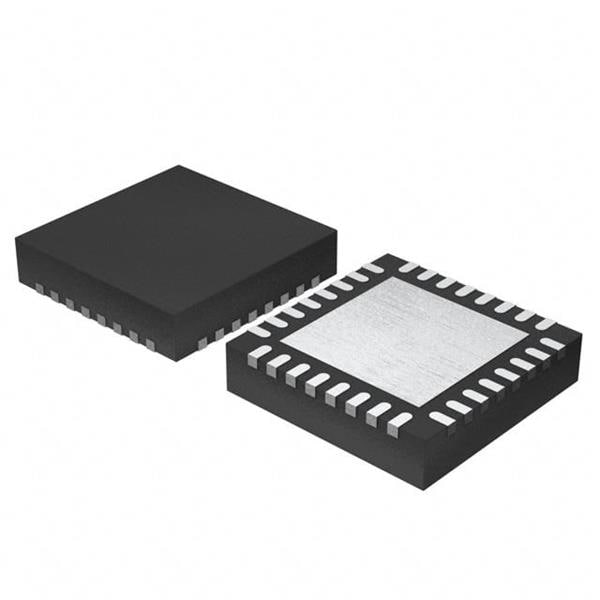

Zilog / Littelfuse Z8F3224QK020XK MCUs 32K Flash Z8 Encore! XP F3224 Series MCU, 3.75K RAM, 32-pin

Core: eZ8

Data RAM Size: 3.75 kB

Data RAM Type: RAM

ADC Resolution: 12 bit

Data Bus Width: 8 bit

Interface Type: I2C, RS-485, SPI, UART

Mounting Style: SMD/SMT

Number of I/Os: 26 I/O

Watchdog Timers: Watchdog Timer

Processor Series: F3224

Moisture Sensitive: Yes

Program Memory Size: 32 kB

Program Memory Type: Flash

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.8 V

Number of ADC Channels: 12 Channel

Maximum Clock Frequency: 20 MHz

Operating Supply Voltage: 1.8 V to 3.6 V

Number of Timers/Counters: 3 Timer

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
