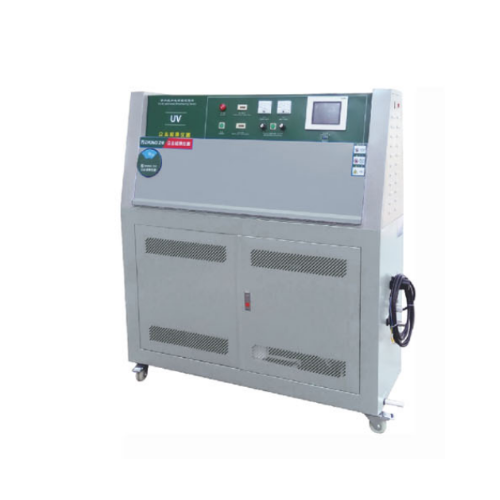

Zhongzhi CZ-UV-300L UV Chamber

Internal Dimension: 1000x500x600 (mm) WxHxD

External Dimension: ABout 1600x1412x800 (mm) WxHxD

The Center Distance of Inner Lamp Tube: 70mm

Distance For Test Surface of Specimen and Lamp Tube: 50±3 mm

Spacing adjustable Lamp Tube Length: 1220mm

Lamp Tube Power(kw): 40W

Service Life of Lamp Tube: Above 1600h

Lamp Tube Quantity: 8 Pieces in all

Usage Environmental Condition: Environment temperature: 25°C; R.H.≤85%, this two values measured under the condition of no test sample in the chamber

Temperature/Humidity Range: Irradiation temperature: 50~70°C, condensation temperature: RT~60°C, spray temperature: RT, RT≥85%RH

Main Technical Parameter: Temperature resolution: 0.01°C, temperature deviation: ±1°C, temperature uniformity: ±2°C, temperature fluctuation: ±0.5°C, spray time: 1 min ~ 99h adjustable, ultraviolet wavelength: UV-A wavelength converge is 320-400nm, wavelength of center is 340nm, UV-B wavelength coverage is 280-320nm, wavelength of center is 313nm. UV tube can choose UV-A/UV-B tube, If no special instruction, we will equip UV-A tube.

Weight: 200kg

Power(kw): About 5.5 KW

Max Current: About 16A

Power Supply: AC 220V
