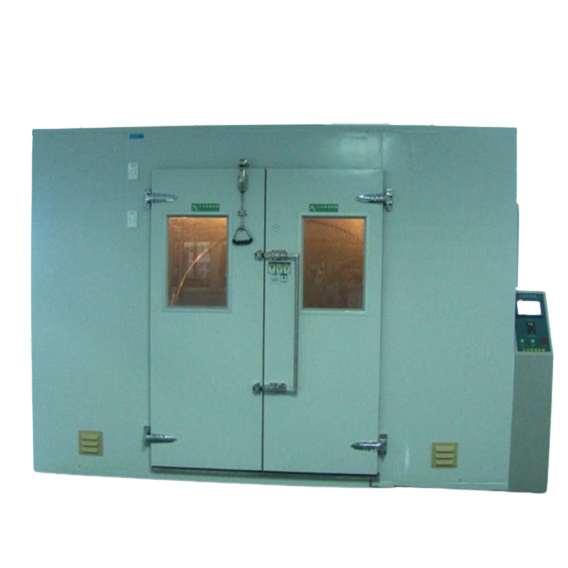

Zhongzhi CZ-A-20000A Walk In Chamber (25℃~80℃, 20%~95%R.H)

Internal DimensionsWxHxD(m): 4.0x2.0x2.5

External DimensionsWxHxD(m): 5.1x2.3x2.76

Temperature Range: 25℃ ~ 80℃(Over 80°C will be customized)

Humidity Range: 20% ~ 95%R.H (10%-98%R.H/5%~98%R.H special conditions for selection)

Analytic Accuracy/Evenness Degree of Temperature and Humidity: ±0.1℃; 0.1%R.H/±1.0℃; ±3.0%R.H

Control Accuracy/ Temperature Stability of Temperature and Humidity: ±1.0℃; ±2.0%R.H/±0.5℃; ±2.0%R.H

Heating/Cooling time: About 3.0°C/min; about 1.0°C/min (down 2~10°C per minute for special condition of application)

Internal and Outer Materials: The external box is the SUS304# stainless steel surface strips or cold-rolled steel paint (optional), the inner box is SUS 304# stainless steel.

Insulation Material: High temperature resistant high density polyurethane foam insulation materials.

Cooling System: The test chamber is less than 10 m³, can select air-cooled or water-cooled; if more than 10 m³, they are all water-cooled

Protective Device: Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, failure warning system

Parts: Recorder (optional), watching window, 50mm test hole, PL internal bulbs, partition plate, dry and wet ball gauze

Controller: South Korea "TEMI"

Compressor: France's "Tecumseh" Brand

Power: 3Փ 380VAC ± 10% 50/60Hz

Note: If the space is less than 10 m³, it can be made as whole structure, movable or board assembly structure; if it more than 10 m³, all of them are board assembly structure.
