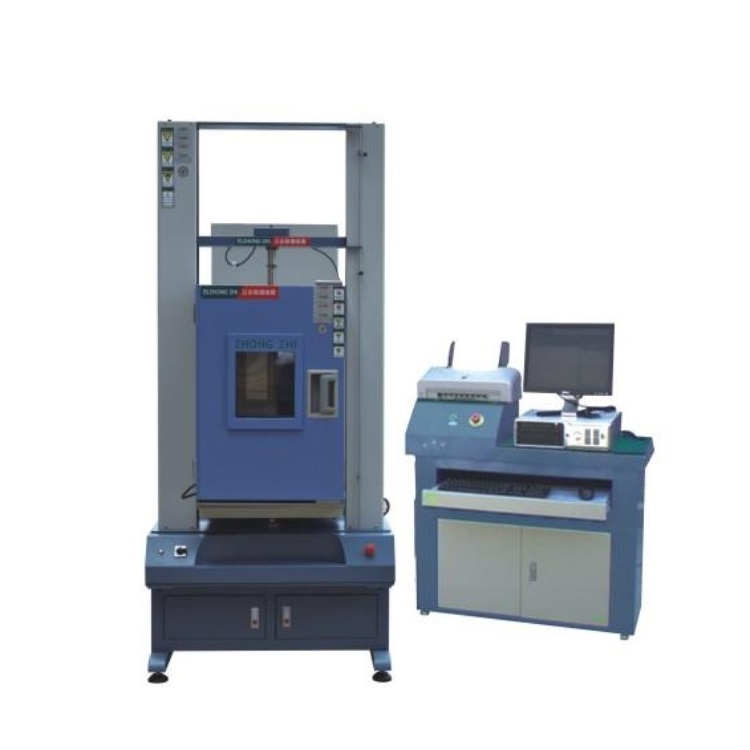

Zhongzhi CZ-8014 Climate Tensile Chamber

Capacity Selection: 100N, 250N, 500N, 1kN, 2.5kN, 5KN, 10KN, 20KN

Unit (Switchable): N,kN,kgf,Lbf,MPa,Lbf/In2,kgf/mm2

Temperature Range: 0, -20, -40, -60 ~ 100℃

Humidity Range: 20-98%RH

Control Method: P.I.D Auto Calculation

Inner Dimension (WxDxH): 400x400x600 mm Accept customized

Accuracy Grade of Machine: 0.5 Level/1 Level

Load Resolution: 1/500,000(0.5 Level)/1/250,000(1Level)

Load Magnifying Rate: Section-less

Test Speed: 0.001-500 mm/min、others(Customized)

Speed Accuracy: ±0.25%(0.5 Level)/±0.5%(1 Level)

Displacement Resolution: 0.00004 mm

Motor: AC frequency control motor

Transmission Rod: High accuracy of ball screw

Main Unit Dimension (WxDxH)(standard): 995x1500x2300 mm

Power: AC220/50HZ or specified by user
