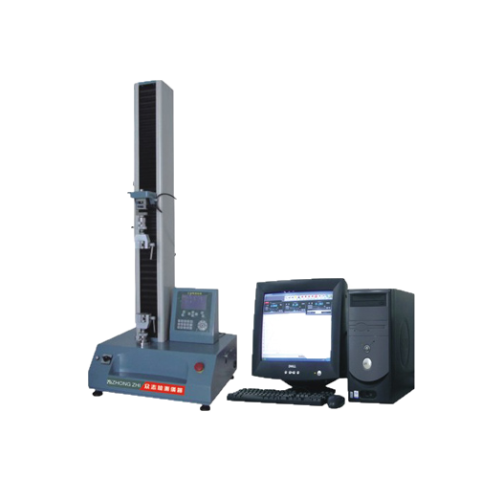

Zhongzhi CZ-8002 Servo Controll Universal Testing Machine

Capacity (Optional): 50N, 100N, 250N, 500N, 1kN, 2.5kN, 5kN

Unit (switchable): N,kN,kgf,Lbf,MPa,Lbf/In²,kgf/mm²

Load Resolution: 1/500,000(0.5 Level), 1/250,000(1 Level)

Accuracy Grade of Machine: 0.5 Level/1 Level

Load Magnifying Rate: Section-less

Max Stroke (Exclude the Grips): 650 mm Standard, 850 mm Heighten Option

Effective Width: No Limit

Test speed: 0.001 ~ 500mm/min or others

Speed ​​accuracy: ± 0.25% 0.5 Level/ ± 0.5% 1 Level

Displacement Resolution: 0.00004mm

Software: Random controller + standard control software

Motor: AC Servo motor

Transmission Rod: High accuracy of ball screw

Main Unit Dimension (WxDxH): Standard: 585x505x1290mm, Heighten: 585x505x1490mm

Power: AC220/50HZ 10A or specified by user
