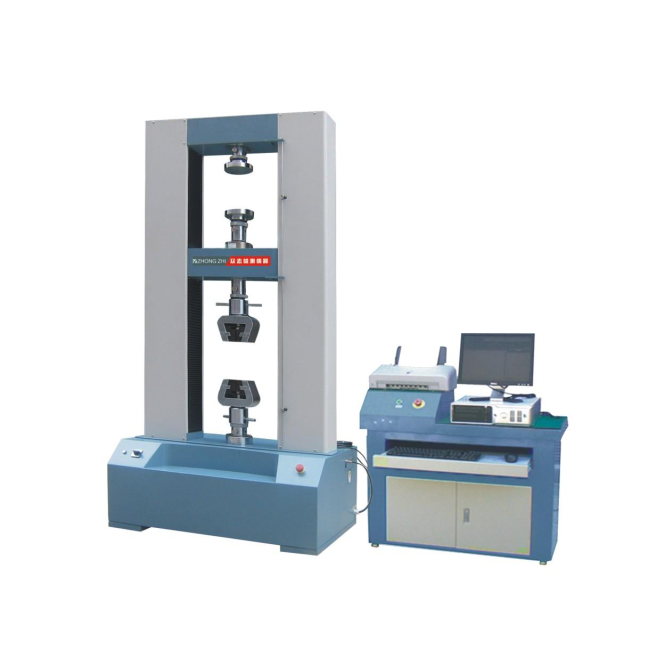

Zhongzhi CZ-8000A Servo Controlled Tensile Testing Machine

Capacity (Optional): 50kN, 100kN, 200/300kN

Unit (switchable): N,kN,kgf,Lbf,MPa,Lbf/In²,kgf/mm²

Load Resolution: 1/500,000

Accuracy Grade of Machine: 0.5 Level

Load Magnifying Rate: Section-less

Max Stroke (Exclude the Grips): 1200 mm, 1100 mm

Effective Width: 500mm others (Customized), 550 mm others (Customized)

Test speed: 0.001 ~ 500mm/min

Speed ​​accuracy ± 0.25%

Displacement Resolution: 0.00004mm

Software: Closed-loop control software

Motor: Servo motor

Transmission Rod: High accuracy of ball screw

Main Unit Dimension (WxDxH): 1022x700x2000mm (50kN), 1080x700x2340mm (100kN), 1120x700x2520mm (200/300kN)

Power: AC220/50HZ 15A or specified by user
