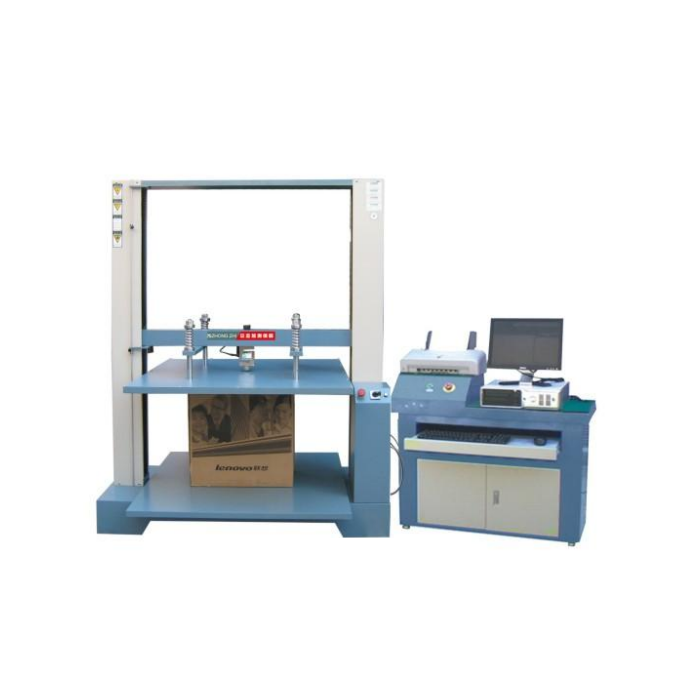

Zhongzhi CZ-6509 Servo Carton Compression Tester
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Capacity (optional): 20kN Optional 10kN, 50kN, 100kN
Load Resolution: 1/250,000
Test Space
Standard: 1000 x 1000 x 1000mm
Designed: 1200 x 1200 x 1200mm; 1500 x 1500 x 1500mm
Test Speed: 10-200mm/min
Speed Accuracy: 1%
Displacement Resolution: 0.00125mm
Software: Standard control software
Test Item: Compressor Test
Motor: AC frequency control motor
Transmission Rod: High accuracy of ball screw
Main Unit Dimension (WxDxH): 1400x1000x1715mm (20kN below type)
Power: AC220/50Hz or specified by user
