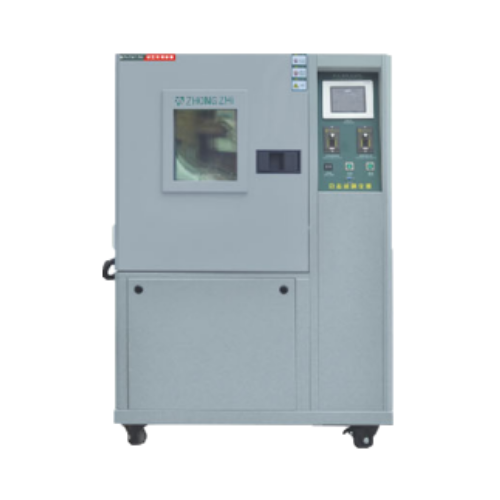

Zhongzhi CZ-150CY Ozone Chamber (0~1000 pphm)

Workshop Size (DxWxH): 50x50x60 cm

Temperature Range of The Working Chamber: RT + 10 ~ 60°C

Temperature Fluctuation: ± 0.5°C

Temperature Deviation: ± 1.0°C

Temperature Resolution: 0.1°C

Turntable Rotary Speed: 1~30r/min adjustable

Stretching Speed: 1~30r/min adjustable

Stretching Distance: 1~150mm adjustable

Product's Extension Length: 1~100mm adjustable

Ozone Concentration: 0~1000 pphm (control of the set value) adjustable

Deviation of Ozone Concentration: ≤5%pphm

Air Velocity: Realizable gas velocity is 12 ~ 16 mm/s or 600 mm/s + 100 mm/s

Watt: 3.5KW
