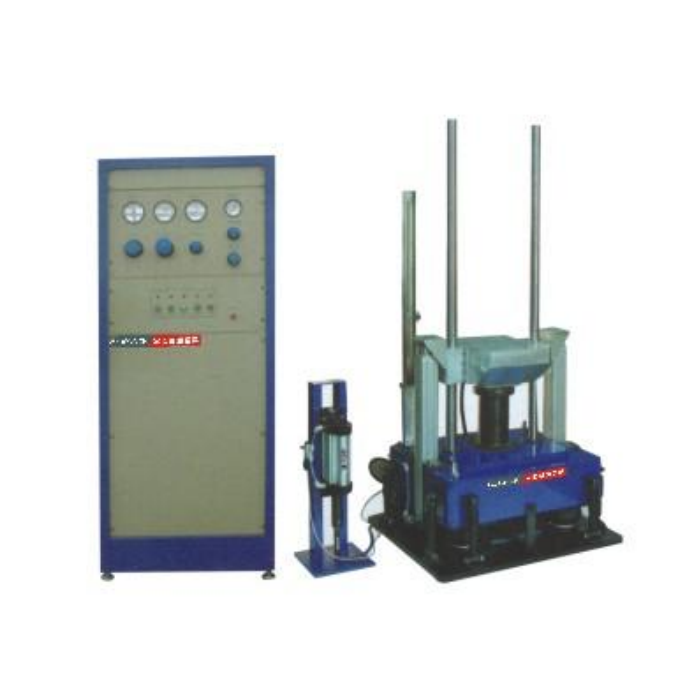

Zhongzhi CZ-11-100 Pressure-driven Vertical Impact, Bump Test Bench
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Rated Load: 100kg
Bench Dimension: 600x600mm
Impact Wave: Half-sine/ Final Peak Sawtooth/ Trapezoidal
Impact acceleration: 30-6000/150-1500/300-1000 (m/s2)
Pulse Duration: 40~1.5 / 18~6 / 12~6 (ms)
Dimension (LxWxH): 1260x880x2020mm
Body Weight: 2500kg
Control cabinet size: 545x720x1335mm
Booster Unit Dimension: 300x300x850mm
Maximum Collision Frequency: 100
Index Usage Standard: GJB150, GJB360, GJB548, GB/T2423, JJG541, MIL-STD-810F, IEC60068-2-27
