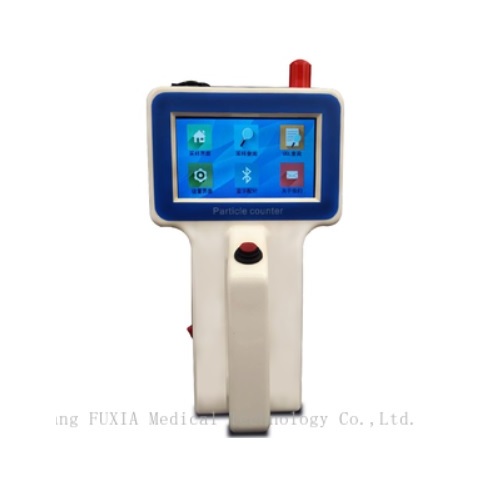

Zhejiang FUXIA Y09-3016 Laser Particle Counter (0.3; 0.5; 1; 3; 5; 10μm)

Test particle size: 0.3; 0.5;1;3;5;10μm

Light source: Laser diode (lifetime greater than 30,000 hours)

Flow: 2.83L/M（0.1cfm)

Counting efficiency: 50±10%@0.3μm, 100±10%@0.5μm

Measuring repeated relative deviation: ≤±10%

Sampling time: User-defined (1 minute to 99 minutes)

Sampling delay: User-defined (1 minute to 99 minutes)

Sampling frequency: 1 to 99 times or continuously

Alarm level: Class100 to Class 300,000 (FED209E standard) or 5 to 9 (ISO14464-1 standard)

Test method: Single / repeat / continuous / timing / average

Data memory capacity: 1000 sets of measurement data

Communication interface: USB

Maximum communication rate: 12MBPS

Charging time: 3 hours, 12 hours for the first charge

Self-cleaning time: ≤10min

Maximum concentration: +/-5% at 2000000 particles/ft3 (71000 Particle/)

Screen display mode: LCD touch screen
