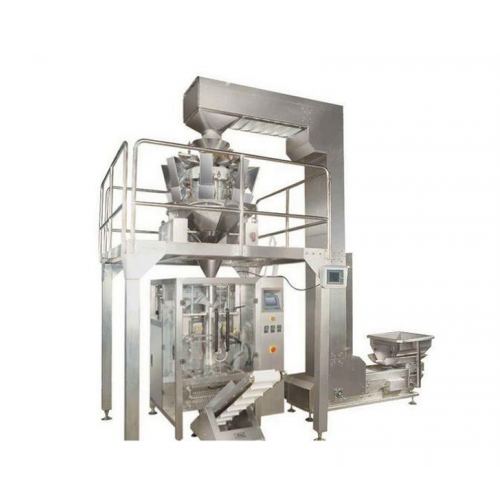

Zengran VFFS5000D Bagging Machine With Multihead Weigher (30-80bags/min)

Bag type: Pillow bag, gusset bag, punching bag

Bag size range: (50-280)(L)*(70-200)(W)mm

Packing speed: 30-80bags/min

In/ex reel dia of film roll: 75mm 400mm

Compressed air: 0.6MPa 350L/min

Power supply: 380V 50-60HZ 3KW

Gross weight: 0.5T

Machine dimension: 1730(L)*1072(W)*1550mm(H)

Machine material: SS304+LY11/SS304+Carbon steel

Technical Data Of Standard Multihead Weigher

- Weighing range: 10-1500g

- Accuracy : ±0.5%

- Max. speed: 120P/M

- Hopper volume: 1.6/2.5L

- Control panel: 7''Touch Screen

- Options: Dimple Plate/Timing Hopper/Printer/Reject Device

- Driving system: Step Motor

- Power supply: 220V/1500W/ 50/60Hz /10A

- Machine dimension(mm): 1700(L)*1110(W)*1130(H)mm

- Gross weight: 490kg
