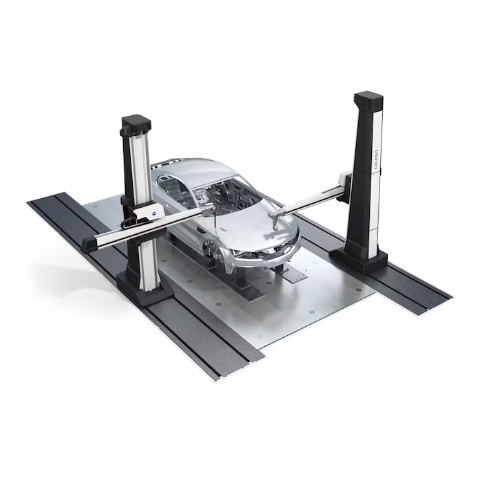

ZEISS CALENO T Horizontal-Arm CMM

Measuring volume up to

Single: X [mm] 7250;Y [mm] 1800;Z [mm] 2500

Duplex: X [mm] 7000;Y [mm] 2800;Z [mm] 2500

Length measurement error

Standard: Temperature 16°C –24°C; E in μm 27 + L /80 ≤70

Option High Accuracy: Temperature 18°C –22°C; E in μm 18 + L/125 ≤50

Maximum Speed and Acceleration

Standard: V spacial 260 mm/s; A spacial 260 mm/s

Option Performance with light barrier: V spacial 866 mm/s; A spacial 1500 mm/s2
