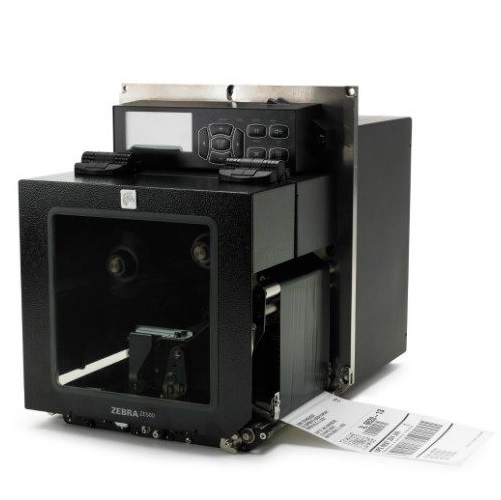

Zebra ZE500-4 Print Engines (203dpi, 300dpi)

Length: 14.9"/379mm

Width: 9.6"/245mm

Height: 11.8"/300mm

Weight: 34lbs/15.4kg

Resolution: 203 dpi/8 dots per mm or 300 dpi/12 dots per mm

Memory: 16 MB SDRAM, 64 MB Flash

Maximum print width: 4.1"/104mm

Maximum print speed: 12"/305 mm per second (203 and 300 dpi)

Print length:

- Label and liner width: 0.625”/16mm to 4.5”/114mm

- Minimum length with back feed: 0.5”/13mm

- Minimum length without back feed: 0.25”/6.5mm

- Minimum length in stream mode: 0.25”/6.5mm

- Maximum length: 39”/991mm

- Maximum continuous media print length: 150”/3.810mm

- Ribbon width: 1”/25.4mm to 4.2”/107mm
