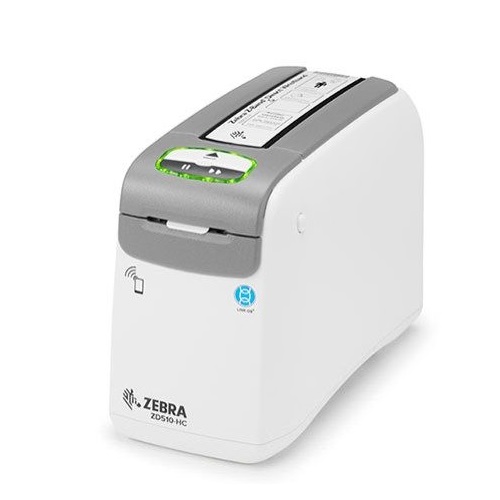

Zebra ZD510-HC Wristband Printer (300 dpi)

Dimensions: 5in. Wx7in. H*x9.5in. D

127mm Wx178mm H*x242mm D

* Requires 6in./153mm clearance above printer to load cartridge

Maximum print length: 22in./558mm

Minimum print length: 3in./76mm

Print widths: 0.75in./19.05mm, 1in./25.4mm, 1.1875in./30.16mm

Resolution: 300 dpi/12 dots per mm

Maximum print speed:

- Healthcare: 2in./51mm per second

- Z-Band Fun and Z-Band Splash: 4in./102mm per second

Operating temperature: 40°F to 104°F /4.4°C to 40°C

Storage temperature: -40°F to 140°F /-40°C to 60°C

Operating humidity: 20%-85% non-condensing R.H.

Storage humidity: 5%-85% non-condensing R.H.

Datasheet
