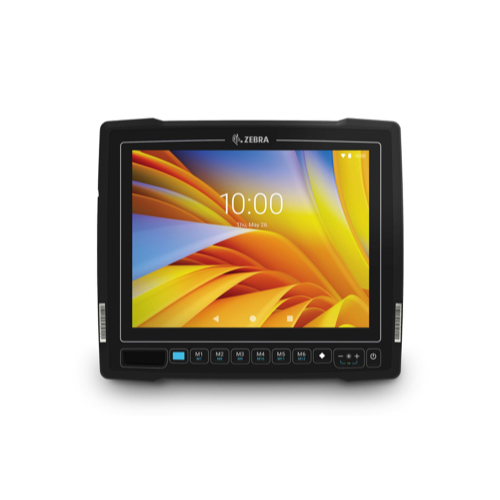

Zebra VC8300 Vehicle Mount Computer (10.4 in. color XGA; 400 NITs)

Dimensions (W x H x D): 276 x 238 x 90 mm

Weight: 8.2 lbs/3.7 kg

Display: 10.4 in. color XGA (1024 x 768); 400 NITs

Touch panel: Multi-touch capacitive, Corning Gorilla Glass with air gap, optional heater, optional anti-reflective foil

Power: 12 to 48VDC nominal | 10 to 60VDC min/max | Isolated and integrated power supply

Keyboard Type: QWERTY/AZERTY

Keyboard: Backlit, field replaceable, full alphanumeric, 67 keys, 12 direct function keys; Diamond key pop-up on-screen keyboard for additional characters

Connectivity: 1x Type C USB 3.0 combination host and client port; 1 x USB 2.0 host port (with strain relief and covered); 1 x standard powered USB 2.0 host port with 12V / 1.5 A (with strain relief and covered); 2 x RS-232 COM ports with power on pin 9; 1 x 3.5 mm audio jack for push-to-talk speaker/mic (with strain relief and covered); optional USB-Ethernet adapter

CPU: Qualcomm Snapdragon™ 660 octa-core 2.2 GHz

Operating System: Upgradeable to Android 14

Memory: 4GB RAM/32 GB Flash pSLC

Operating Temperature: -22° F to 122° F/-30° C to 50° C

Storage Temperature: -40° F to 140° F/-40° C to 60° C

Humidity: 5% - 95% RH non-condensing

Sealing: IP66

Sensors: Temperature sensor, accelerometer sensor, gyroscope sensor

Supported Scanners: HID via USB and Bluetooth; SSI via USB and Bluetooth for DS/LI 36XX and RS6000; RS232 Serial with power on pin 9

Datasheet
