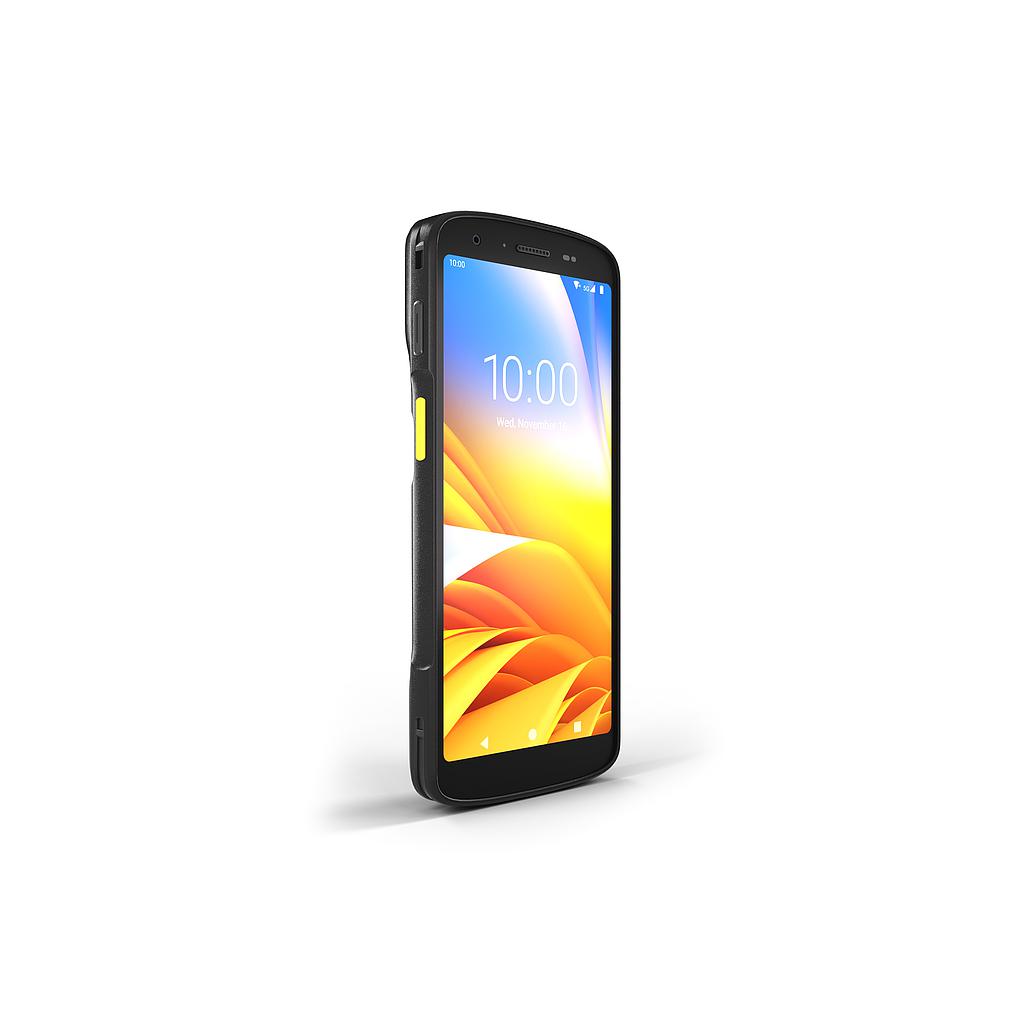

Zebra TC22 Mobile Computers(WIFI6, ANDROID GMS, 2D IMAGER(SE4710),NFC,6GB/64GB,R/CAM.(WLMT0-T22B6ABC2-A6)

Physical Characteristics

Dimensions

6.5 in. L x 3.0 in. W x 0.49 in. D

165 mm L x 76.3 mm W x 12.5 mm D

Weight8.32 oz/236 g (TC22 3800mAh battery)

9.24 oz/262 g with 5200mAh battery

Display 6.0 in. color Full High Definition+ (1080 x 2160); LED backlight; 450 Nits; Corning® Gorilla® Glass

Imager WindowCorning® Gorilla® Glass

Touch PanelMulti mode capacitive touch with bare or light gloved fingertip input

PowerUser removable, rechargeable Li-Ion, PowerPrecision for real-time battery metrics; Standard Capacity: 3800 mAh/14.63Wh; Extended Capacity: 5200 mAh/20.02Wh; BLE battery: 3800 mAh/14.63Wh

Expansion SlotUser accessible MicroSD card supports up to 2 TB

SIMTC27 only: 1 Nano SIM and 1 eSIM (except China)

Network ConnectionsTC22: WLAN, WPAN; TC27: WWAN, WLAN, WPAN

Notifications Audible tone; multi-color LEDs; vibration

KeypadOn-screen keypad

AudioTwo microphones with noise cancellation; dual speakers for loudness; Bluetooth wireless headset support; high quality speaker phone; PTT headset (Zebra USB-C) support; HD Voice, including Super-wideband (SWB), Wideband (WB) and Fullband (FB)

ButtonsDual dedicated scan buttons; programmable button for PTT or other use; volume up/down; power

Interface PortsUSB 3.1 (Bottom Type C)—Super Speed (host and client); 2-pin or 8-pin rear connector

Performance Characteristics

CPUQualcomm® 5430 hex-core, 2.1 GHz

Operating SystemUpgradeable to Android 16

Memory6 GB RAM/64 GB UFS Flash;

8 GB RAM/128 GB UFS Flash

User Environment

Operating Temp.14°F to 122°F/-10°C to 50°C

Storage Temp.-40°F to 158°F/-40°C to 70°C

Humidity5% - 95% non-condensing

Drop Spec.

Multiple 5 ft./1.5 m drops to concrete over operating temp (-10° C to 50° C/14° F to 122° F) with protective boot per MIL-STD-810H

Multiple 4.5 ft/1.3 m drops to tile over concrete over operating temp (-10° C to 50° C/14° F to 122° F) per MIL-STD 810H

Tumble Spec.500 tumbles, 1.6 ft./0.5 m; 500 tumbles, 3.3 ft./1.0 m with optional protective boot

SealingIP68 and IP65, with battery per applicable IEC sealing specifications

Electrostatic

Discharge (ESD)

+/-15 kV air discharge, +/-8 kV direct discharge; +/-8 kV indirect discharge

Accessories

ZEBRA POWER SUPPLY-100-240 VAC,5 V, 2.5 A WITH UK

PLUG (PWR-WUA5V12W0GB)

ZEBRA USB C TO USB A COMM & CHARGING CABLE, 1M

(CBL-TC5X-USBC2A-01)

ZEBRA VEHICLE CHARGING CRADLE, DROP-IN STYLE W/

SIDE LOCKING LATCHES (CRD-TC56-CVC2-02)

ZEBRA TC22/27 HANDSTRAP (SG-TC2L-HSTRP1-01)
