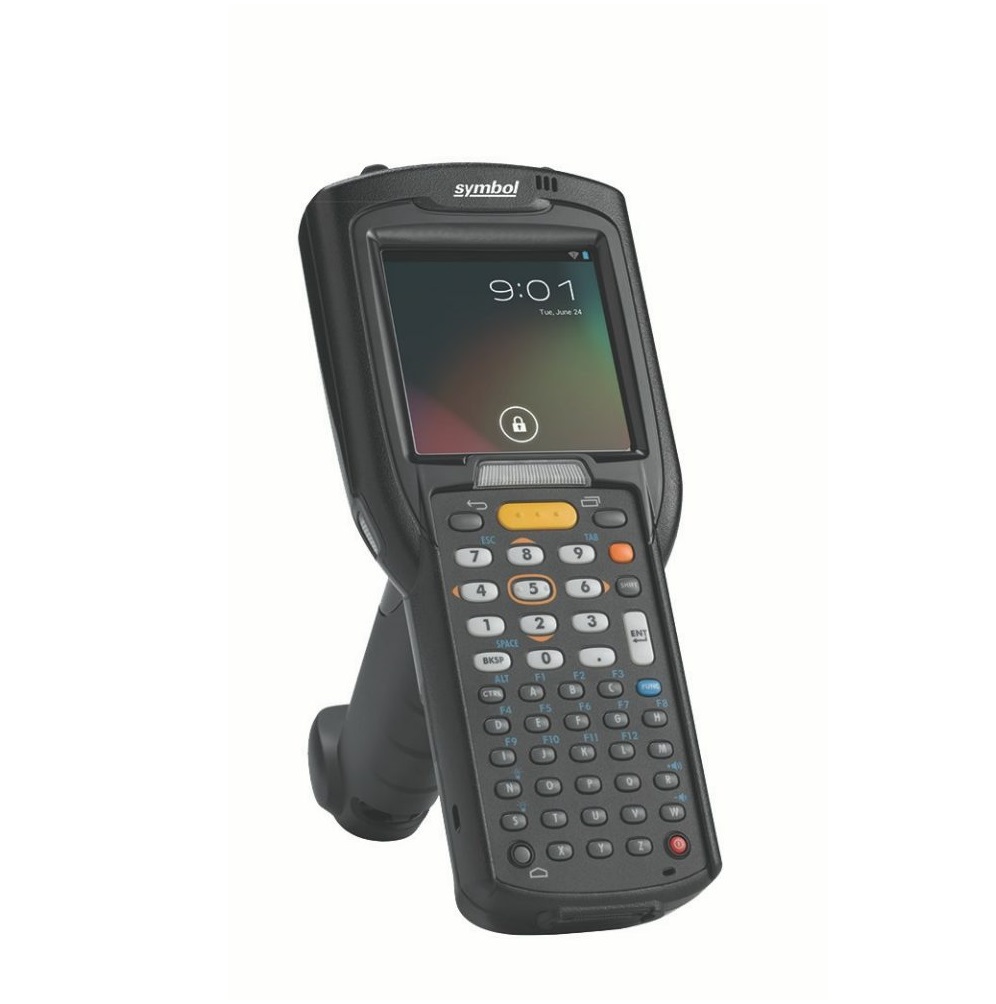

Zebra MC32N0 Mobile Computer

Dimensions:

- Straight Shooter: 7.49in. Lx3.22in. Wx1.78in. D

190.4mm Lx81.9mm Wx45.2mm D

At grip: 2.40in. Wx1.35in. D

60.9mm Wx34.2mm D

- Rotating Turret: 8.37in. Lx3.22in. Wx1.57in. D

212.6mm Lx81.9mm Wx40.0mm D

At grip: 2.40in. Wx1.35in. D

60.9mm Wx34.2mm D

- Gun: 7.59in. Lx3.18in. Wx6.5in. D

192.7mm Lx80.8mm Wx166mm D

Weight (including strap, stylus, and battery):

- Straight Shooter: 12.88oz./365g

- Rotating Turret: 13.13oz./372g (with standard battery)

- Gun: 18.0oz./509g (with extended battery)

Display: 3.0in. color (TFT) (320x320) display

Touch panel: Chemically strengthened glass, resistive touch

Backlight: LED Backlight

Keypad options: 28-key Numeric, 38-key Shifted Alpha, 48-key Alpha-Numeric

Expansion slot: User accessible Micro SD slot; (supports up to 32GB microSDHC)

Notifications: LEDs, audio

Audio: Speaker, microphone and headset connector (2.5mm jack)

Scanning: 1D Laser(1): SE965 Standard Range with Adaptive Scanning (all models)

1D/2D Imager: SE4750-SR, 4750-MR (Straight Shooter and Gun models only)
