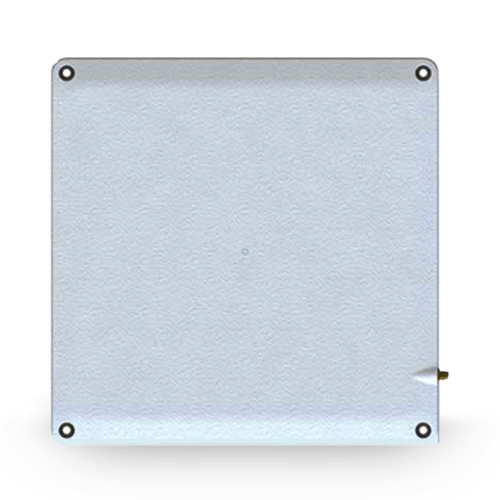

Zebra AN510 Ultra-Rugged, Low Profile Antenna (865 – 868 MHz / 902 – 928 MHz; 3 Watts)

Polarization: Right-hand circular

Dimensions: 250 mm x 250 mm x 14 mm/ 9.85 in. x 9.85 in x 0.55 in

Connector: SMA female

Connector Location: Side mounted

Mounting Options: Flush mount or VESA mount

Weight: 1.6 lbs./0.75kg

Casing/Materials: UV-Resistant ABS

Frequency Ranges: EU: 865 – 868 MHz / US: 902 – 928 MHz

VSWR (Return Loss): 1.3:1

Gain: 8.5 dBic

Front to Back Ratio: 20 dB

3 dB Beam Width: 68° in both planes

Maximum Power: 3 Watts

Axial Ratio: 1 dB

Operating Temperature: -20° to +55°C/-4° to +131°F

Storage Temperature: -30° to +65°C/-22° to +149°F

IP Sealing: IP67

Vibration: MIL-STD-810G

Humidity: 72 Hours @ 85°C relative humidity
