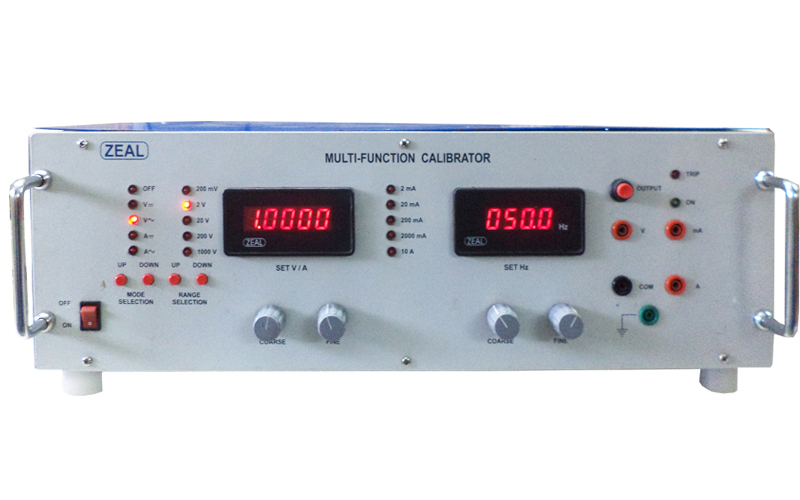

ZEAL ZMMFC4.5 Multifunction Site Calibrator (1000V, 10A, 100 MΩ)

Input Power: 230V AC, 50Hz

Operating Temperature: 15°C to 45°C

DC Voltage Ranges: 200mV, 2V, 20V, 200V, 1000V

AC Voltage (45 Hz to 1000 Hz) Ranges:200mV, 2V, 20V, 200V, 1000V

DC Current Ranges: 2mA, 20mA, 200mA, 2A, 10A.

AC Current ( 45 Hz to 1000Hz ) Ranges: 2mA, 20mA, 200mA, 2A, 10A.

Frequency: 45Hz to 1 kHz

Fixed Resistance: 1 Ω,10 Ω, 100 Ω, 1k Ω, 10k Ω, 100k Ω, 1M Ω, 10 MΩ,100 MΩ

Fixed Capacitance: 1nF, 10nF, 100nF, 1μ F, 10μF

RPM (Non Contact): 60,000 RPM Non Contact Type

V/A Selection: By Toggle Switch

Range Selection: By Rotary Switch

Setting: V/A setting by multiturn Coarse & fine potentiometers, Frequency by potentiometer, Accuracy(@ 15°C to 30°C, RH<70%)

DC Voltage: ±0.2 % of Rdg±5 Dgt.

AC Voltage: ±0.3% of Rdg±10 Dgt, Frequency: 0.1 Hz

Resistance: ±0.25%, Capacitance/Inductance: ±5%

RPM(Non Contact Type): ±0.1%±5 Dgt

Accessories: X 100 AC/DC current coil for clamp on meters calibration up to 1000A

Dimensions:W:400 X D:400 X H: 170 mm

Weight:19kg
