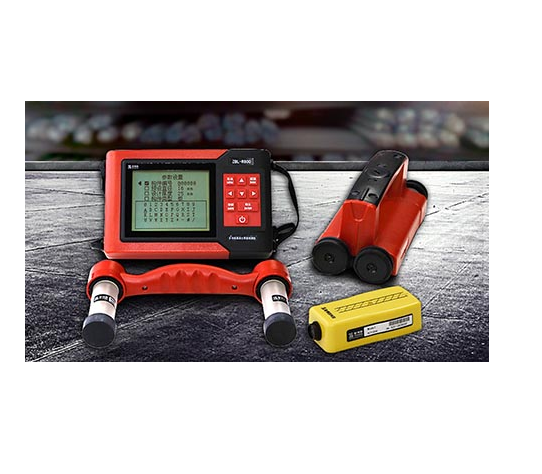

ZBL-R800 MultiFunction Rebar Detector (Ф6mm～Ф50mm)

ModelZBL-R800

USD 3,801.60

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Applicable range: Ф6mm～Ф50mm

Maximum allowed error for diameters measurement

: ±1 rebar standard level

Protective layer thickness range (mm)

Maximum allowed error for protective layer

First range: 3～98

-3～77: ±1 mm

-58～98: ±2 mm

Second range: 3～196

-3～77: ±1 mm

-58～118: ±2 mm

-70～196: ±4 mm

Data transmission: wireless transmission

USB port: thumb drive storage available

Corrosion detection method

Single electrode

Measuring range: ±1000mV

Accuracy: ±1mV

Tested points Interval X: 0～100 adjustable

Tested points interval Y: 0～100 adjustable

Double electrode

Measuring range: 0～1000 mV

Accuracy: ±1mV

Tested points Interval X: 20 fixed，

Tested points interval Y: 0～100 adjustable

Power: Built-in chargeable lithium battery

Battery Time:>38 hours

Dimensions:212mm´134mm´50mm

Weight:0.9kg

R800, Multi-parameter probe,Electrode,Waterproof case

Application：ZBL-R800 is a multi-functional integrated rebar detector which can be used for

testing the thickness of protective layers, measuring the diameter, location, and distribution of

rebar as well as for detecting the corrosion content of a rebar.
