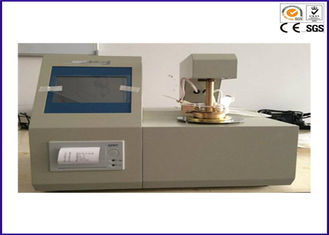

YuYang YY434 ASTM D56 Fire Testing Equipment Tag Closed Cup Auto Flash Point Analyser

Display method: Critical digital oxygen 7-inch color touch screen display

Measurement: Differential detection type thermocouple

Measuring range: Room temperature -399 ºC

Resolution: 0.1ºC

Repeatability:

National Standards: flash point <104 ºC when tolerance ± 1 ºC, flash point ≥104 ºC when tolerance ± 2 º

International standards: flash point ≤110 ºC when tolerance ± 1 ºC, flash point> 110 ºC when tolerance ± 2 ºC

Printer: High-speed thermal printer, 56 mm paper width

Temperature detection: Import platinum resistance (Pt100Ω)

Ignition: Airless electronic ignition source

Self-test function: Instrument automatic fault diagnosis

Cooling method: Forced air

Power consumption: <550W

Environment: Temperature of 10 ºC -45 ºC, humidity 30-80%

Power supply: AC220V±10%

Dimensions: 450*280*290 mm

Weight: About 15KG
