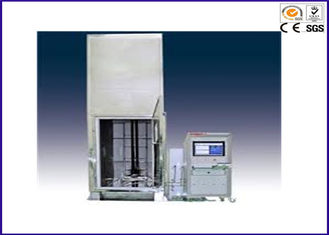

YuYang YY412 Laboratory Fire Test Chamber Bunched Cable Vertical Flame Spread Test

1. Internal dimensions of stainless steel test chamber: 1,000(W)×2,000(D) ×4,000(H)mm, supplemented with insulated mineral wool material

2. At the lower section of the test chamber, there is a 800(W) x 400(D) sized hole at the 150mm position from the front side of the chamber to supply the air

3. Exhaust hole of the top: 300(W) ×1, 000(D)mm

4. Wide stainless steel ladder dimensions: 500(W) ×3, 500(H) mm; quantity: 1

5. Standard stainless steel ladder dimensions: 800(W) ×3, 500(H); quantity: 1

6. Two sets of banding standard propane burner devices

7. Two sets of venturi gas mixing devices

8. Pressure gauge and pressure reducing valve device, which is able to adjust propane and air pressure to 0.1 MPa

9. Rotameter: used for adjusting and setting the gas flow

10. There is a steel ladder and handrail on the chamber body, which is convenient for the user to test at the top

11. Equipped with a ball valve, so that air supply can be closed manually

12. Set flame test time automatically, and by then the air supply can be cut off automatically

13. Mounted K thermocouples inside the chamber, indicating the internal temperature

14. With forced fire extinguishing device

15. Automatic lifting device

16. Size of chamber :1,165 (W) × 2,165 (D) × 4,350 (H) mm

17. Console Size: 600 (W) × 750 (D) × 1,600 (H) mm

18. Power:AC 220V, 50 / 60hz, 15A

19. Weight:1,500kg
