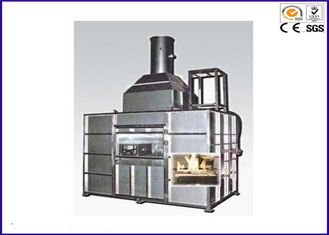

YuYang YY408 Fire Resistance Test Apparatus Hose / Pipe Testing Machine FTP II Res A 753

1. Test Chamber Size : (W) 1,700mm x (D) 900mm x (H)2,000mm

2. Hood Size : (W) 1,700mm x (D) 900mm x (H)2,000mm

3. Duct Size : Ø400 x 2,000(L) mm

4. Exhaust Fan : Armature Voltage : 180V / Revolution : 3000rpm / 1.5HP

5. Heat Source

Section Burner : (W)150mm x (D) 500mm / Nozzle : 20 ea/ 0.1m2 / STS 304

Multiple Burner : (W) 100mm x (D)420mm / Jet burner 15 ea / STS 304

6. Mass Flow Controller

Gas(C3H8) Mass Flow Controller 150 SLPM / Signal output : 0 ~ 5V / Accuracy ±1 of F.S

Air Mass Flow Controller 300 SLPM / Signal output : 0 ~ 5 V / Accuracy ±1 of F.S

7. Vessel for water Size : Ø350 x L500 mm

8. Booster pump : AC 220V / Max 20Bar

9. Calorimeter cube Size : (W)38mm x(D)38mm x (H)38mm

K-type Thermocouple : Ø3.2, (L)235mm

10. DAQ System : 2 channel Analog Input / Output Module / Range : ± 10VDC

2 channel Digital Input / Output Module / Range : ± 5VDC

Size: (W)1,7000 X (D)900 X (H)2,000 mm

Power: 220VAC, 50Hz, 10A

Weight: 300kg

Utilities: LPG Gas Cylinder
