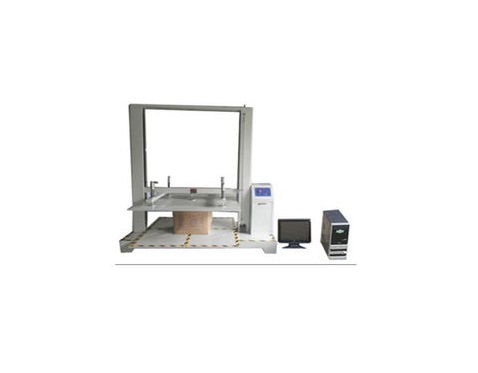

YuYang YY1414 Carton Resist Compression Testing Equipment

Max. Load: 2000Kg

Detecting Method: Loading Cell

Loading Measuring Accuracy: ≤ 0.5%

Force Data Resolution: 1/250000

Displacement Resolution: 1/1000

Displacement Data Resolution: ≤ 0.5%

Display Method: Full Computer display and testing control to display & print force curve & reporting sheet.

Test Travel: 1200mm

Test Space: W1000 X D1000X H1200mm

Overall Dimension: W1800 X D1000X H2000mm

Controller Size: W300 x D300 x H1100mm

Test Velocity: 0.1-100mm/min(Key Input)

Protective System: Automatic Shutdown Device: Max.& Min Limit, Automatic Breaking Point-Tester Shutdown, Max.Loading-Machine Shutdown, Over-load Protection, Over-Voltage Protection, Limit Protective Device

Travel: 1200mm, Full-Travel Parameter available to be displayed

Constant Compression Function: Constant Compression & constant compressing time is available to be set & record current compression parameter & testing time at carton collapse.

Gross Weight: Approx.1000Kg

Power Source: 3P AC 380V 50HZ
