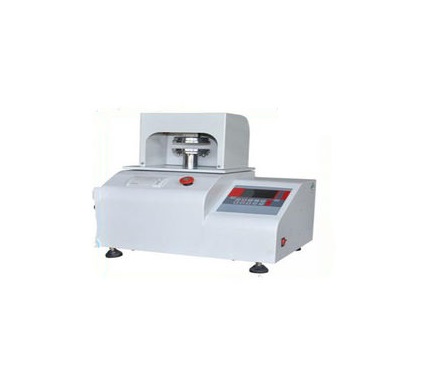

YuYang YY1410 Fully Automatic Bursting Strength Testing Machine Paper Bursting Strength Tester

Capacity (Optional): High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)

Unit (switchable): Kpa, psi, kg/cm^2

Accuracy: ±0.5%

Pressure Range: 250~5600kpa

Speed of Compression: High Pressure 170 10ml/min

Specimen Clamping Force: >690kpa

Oil: 85% Glycerin; 15% Distilled Water

Sensing method: Pressure Transmitter

Indicating Method & Display: LCD

Material of the Ring: Stainless Steel SUS304

Opening in Upper Clamp: 31.5± 0.05 mm Diameter

Opening in Lower Clamp: 31.5± 0.05 mm Diameter

Motor: Anti-vibration Motor 1/8 HP

Operation Method: Automatic

Dimension (LWH): 445*425*525 mm

Weight: Approx. 70 kg

Power: AC220 10%, 50 Hz

Power Capacity: 120W

Standard Configuration: Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle

Optional Configuration: Printer, Air Pump
