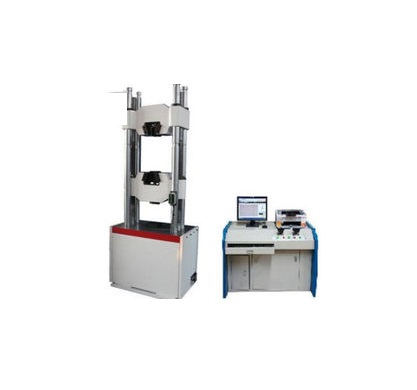

YuYang YY1312 Computer Control Electro-Hydraulic Servo Universal Testing Machine (2000KN)

Max load: 2000KN

Load range: 20-2000kN

Load resolution: 1/200000

Load accuracy: ≤±1%

Deformation accuracy: ≤±1 %

Driving method: Hydraulic system

Max. Tensile space: 750mm

Clamps for flat specimen: Thickness 0 – 40mm

Clamps for round specimen: Diameter Ø 12-60mm

Max. Effective Compression space: 600mm

Compression plate diameter: Ø 148mm

Max. Bending test effective space: 600mm

Ram stroke: 250mm

Crosshead lifting speed: 280mm/min

Testing Speed control range: 0.5-50mm/min

Load measuring mode: Load cell

Displacement measuring mode: Photoelectric encoder

Deformation measuring mode: Extensometer

Power supply: 380VAC, 50Hz, 3-Phase
