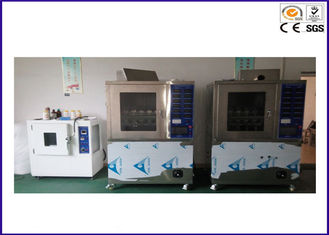

YuYang YY117 6 KV High Voltage Tracking Index Test Apparatus

Electrode Materials: The electrode caput of brass and platinum

Electrode Distance: 4.0mm±0.1mm,60±5°angle

Test Voltage: 100~600V adjustable, displayed value: r.m.s

Test Current: Current limiting 1A±0.1A adjustable, displayed value:r.m.s, tolerance of 1.5%

Electrode Dimensions: width: 5mm±0.1mm, thickness: 2mm±0.1mm, length >12mm, end chisel-edge angle : 30°±2°,platinum.

Electrode Pressure: 1.00N±0.05N

Dripping Nozzle: outer diameter: 0.9mm~1.2mm for solution A 0.9mm~3.45mm for solution B

Dripping Interval: 0-99 seconds (adjustable), the time for 44-55/1cm3 (adjustable) drops to fall on the specimen shall be (30±2)min.

Heigh Drops: 30-40mm±5mm(adjustable)
