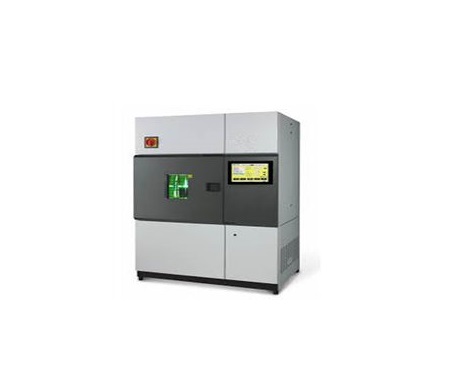

YuYang YY1007 Professional 2 KW Xenon Arc Test Chamber Temperature And Humidity Chamber (2 KW; 50*80*50 cm)

1. Temperature range: RT+10℃～80℃

2. Humidity range: 50～90% RH

3. Black panel temperature: 63～100℃; ±3℃

4. Temperature fluctuation: ≤±0.5℃

5. Temperature uniformity: ≤ ±2.0℃

6. Glass window light filter: 3pcs

7. Light source: imported air-cooled lamp (USA Q-Panel)

8. Lamps: 4 (1 pcs for standby)

9. Rainfall duration: 0～9999min, continuous rainfall adjustable

10. Rainfall cycle:0～240min, rainfall interval adjustable

11. Water spray cycle (water spray time/water no spray time): 18min/102min

12. Xenon arc lamp power: 1.8KW*3=5.4 KW

13. Heating power: 2KW

14. Humidity power: 0.75KW

15. Space between sample holder and lamp: 230～280mm

16. Wavelength: 290～800nm radiation strength:500～1200W/m2

17. Sunlight Time: 1～999h,m,s, light cycle can be continuously adjustable.

18. Test chamber size: 50*80*50CM
