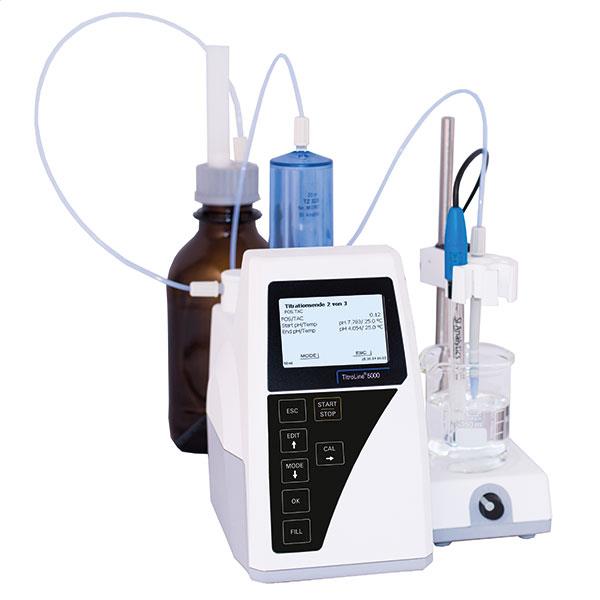

YSI TitroLine® 5000 Titrator

Specifications

- Accuracy: systematic error 0.15 %, random error 0.05 % in compliance with EN ISO 8655-6
- Certifications: ISO 8655, part 6, EMC: 2004/108/EG; safety EG- Directive 2006/95
- Connectivity / Communications: USB-A, USB-B, RS-232-C
- Display: 0000,000...9999,999 ml, 0.005-0.025 ml (depending on dosing unit)
- Keypad: The unit is operated using the keys on the device itself, the controller TZ 3880 and optional PC-keyboard (USB)
- Measurement Method / Channels: pH/mV-input with Electrode socket according to DIN 19 262 or additional with BNC socket insert (Z 860)
- Measurement Range: 0.005-0.025 ml (depending on dosing unit)
- Power: 100 -240 V~; 50/60 Hz, power input 30 VA
- Size: 135 x 310 x 205 mm (W x H x D), including dosing unit, without stirrer, 2.3 kg (without stirrer)
