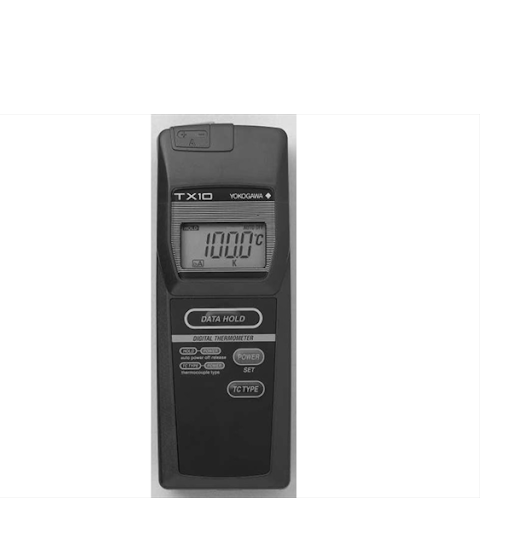

YOKOGAWA TX10-01 Digital Thermometer

Number of Input channel: 1

Measuring Range:

Type E: -200 to 700°C (-328 to 1292°F)

Type J: -200 to 1000°C (-328 to 1832°F)

Type K: -200 to 1372°C (-328 to 2501.6°F)

Type T: -200 to 400°C (-328 to 752°F)

Resolution:-200.0°C to 199.9°C: 0.1°C; 200°C or above: 1°C

Accuracy:+200 °C or above, or when 1°C resolution is set ±(0.2% of rdg + 1°C); -100.0°C to 199.9°C ±(0.1% of rdg + 0.7°C); -200.0°C to -100.1°C ±(0.1% of rdg + 1.0°C)

Temperature Coefficient:± (0.015% of rdg +0.06°C)/°C

Approx. Measurement Interval:1 sec

Display Item:HOLD, °C, ch A, TC type K, J, E, T, Battery alarm

Other Functions:Auto power-off, battery alarm

Display:LCD

Operating Temperature:0 to 50°C

Humidity:80% RH (no condensation)

Power Requirements:Two AA-size alkaline dry batteries (LR6)

Battery Life:About 450 hours

Drip-proof Construction:Conforms to IP54 (dust-proof and drip-proof requirements of IEC529)

Compliance with Standards:EMC Standards; EMI (interference signal): EN55011;1998, EN61326-1;1998+A1 (Class B, Group 1)

EMS (immunity): EN50082-1;1997, EN61326;1998+A1

Dimensions: Approx. 151 (H) x 56 (W) x 33 (D) mm

Weight: Approx. 180 g

Supplied Accessories:Two AA-size alkaline dry batteries (LR6) and instruction manual

Optional Accessories:Extension Cable 5 m (2459 21)/10 m (2459 22)

Soft case (930 12); Temperature Probes (for K type thermocouple); Rounded end probe (900 20B, 900 21B, 900 22B); Needle probe (900 23B, 900 24B); Surface probe (900 30B, 900 31B, 900 32B, 900 33B); Bead TC (2459 07); Waterproof Cover (5-per package)(930 11)

*Brochure

*Instruction Manual

TX1001 Digital Thermometer

Thermocouple Type K Probes

Waterproof Cover
