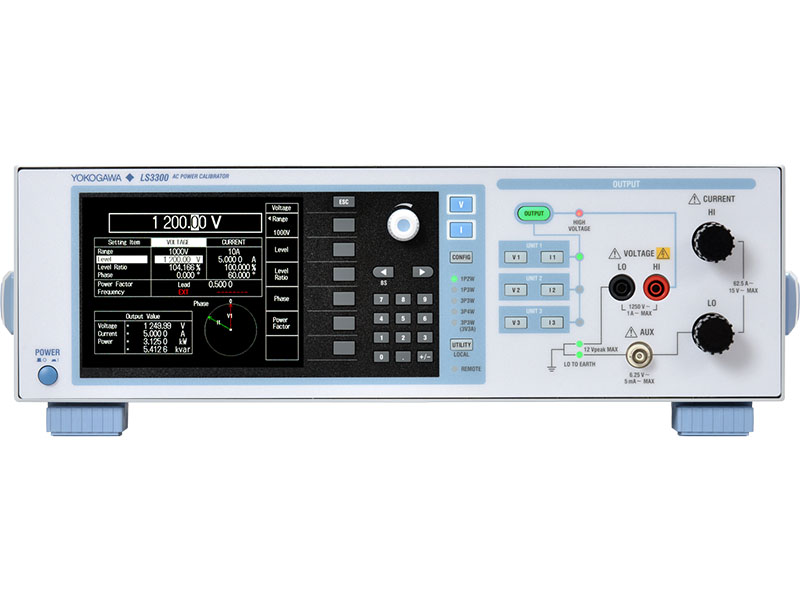

Yokogawa LS3300 AC Power Calibrator

Voltage

Range: 1 V; 10 V; 30 V; 100 V; 300 V; 1000 V

Output Range: 0 to ± 1.25000 V; 0 to ± 12.5000 V; 0 to ± 37.5000 V; 0 to ± 125.000 V; 0 to ± 375.000 V; 0 to ±1250.00 V

Resolution: 10 μV; 100 μV; 1 mV; 10 mV

Maximum Output: 0.5 A or more; 600 mA; 60 mA; 20 mA; 6 mA

Current

Range: 30 mA; 100 mA; 1 A; 10 A; 50 A

Output Range: 0 to ± 37.5000 mA; 0 to ±125.000 mA; 0 to ± 1.25000 A; 0 to ± 12.5000 A; 0 to ± 62.500 A

Resolution: 0.1 μA; 1 μA; 10 μA; 100 μA; 1 mA

Maximum Output: 15 V; 3 V; 0.6 V

AUX

Range: 500 mV; 5 V

Output Range: 0 to ±625.00 mV; 0 to ± 6.2500 V

Resolution: 10 μV; 100 μV

Maximum Output: 0.1 mA; 5 mA

Warm-up time: Approx. 30 minutes

Operating environment: Temperature: 5°C to 40°C; Humidity: 20% RH to 80% RH (no condensation)

Storage environment: Temperature: –15°C to 60°C; Humidity: 20% RH to 80% RH (no condensation)

Operating altitude: Up to 2000 m

Installation location: Indoors

Orientation: Horizontal. Vertical installation is prohibited.

Rated supply voltage: 100 VAC to 120 VAC, 200 VAC to 240 VAC

Permitted supply voltage range: 90 VAC to 132 VAC, 180 VAC to 264 VAC

Rated supply frequency: 50 Hz/60 Hz

Permitted power supply frequency range: 48 Hz to 63 Hz

Maximum power consumption: Approx. 200 VA

Withstand voltage: 1500 VAC for 1 minute between the power supply and case.

Dimensions: 426 (W) × 132 (H) × 450 (D) mm

Weight: Approx. 20 kg
