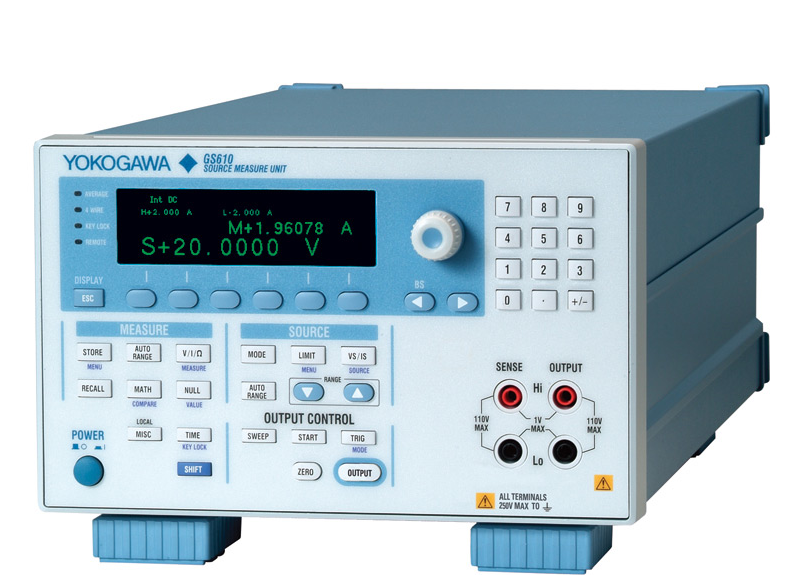

Yokogawa GS610 Source Measure Unit

Display: 256 x 64 dots vacuum fluorescent display

Internal memory:

ROM: 4MB Area for storing setup and output pattern files

RAM: 4MB Area for storing the measured results (cleared when the power is turned OFF)

Warm-up time: At least 60 minutes

Operating conditions: 5 to 40 °C, 20 to 80% RH

Rated supply voltage: 100 to 120 VAC or 220 to 240 VAC (automatic switching)

Rated supply frequency: 50/60 Hz

Maximum power consumption: Approx. 200 VA

Max. common-mode voltage: ±250 Vpeak between the generation(measurement); terminal and case

Max. Output/ input voltage: 110 V between High and Low terminal;

1 V between Output and Sense terminal.

Weight: Approx. 7 kg

Dimensions: Approx. 213 (W) x 132 (H) x 400 (D) mm (excluding projections)
