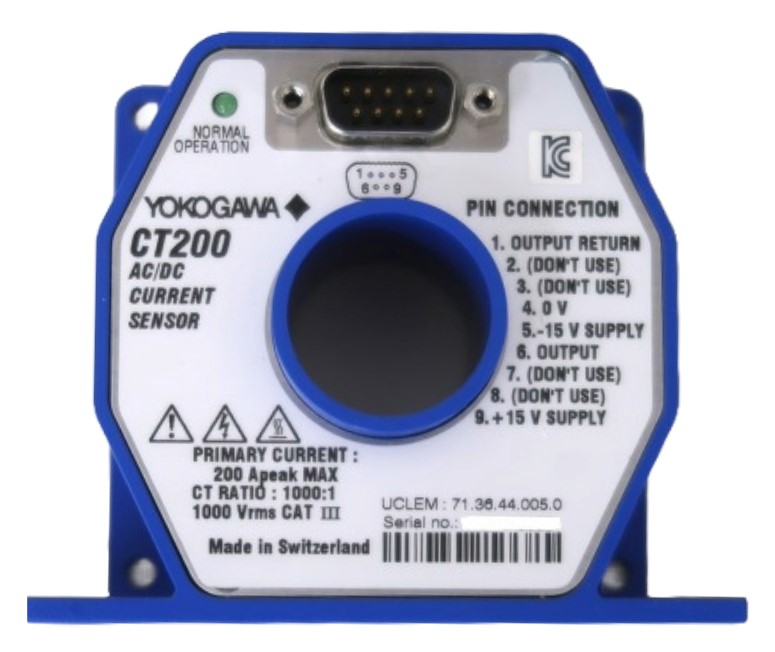

YOKOGAWA CT200 AC/DC Current Sensor (200A)

Rated Current

DC: 0 to 200 A

AC: 200 Apeak

Current transformation ratio: 1000:1

Accuracy

DC: ±(0.05% of rdg + 30 µA)

50/60 Hz: ±(0.05% of rdg + 30 µA), Sine wave

Effect of conductor position: ±0.01% of rdg

Measurement range: DC to 500 kHz (-3 dB)

Temperature coefficient: ±0.01%/°C or less in the ranges from 10 to 18°C and 28 to 50°C

Maximum allowable continuous input: 200 Apeak

Maximum allowable instantaneous input (reference value): 1000 Apeak 0.1 seconds or less

Load resistance (±15 V): 0 to 30 Ω

Operating temperature range: 10 to 50°C

Operating humidity range: 20 to 80% RH (no condensation)

Storage temperature range: 20 to 80% RH (no condensation)

Dimensions

Approx. 93 (W) × 77 (H) × 38 (D) mm (excluding connector, conductor guide, and projections)

Primary current hole diameter: 26 mm diameter

Secondary connector: D-Sub 9 pin

Weight: Approx. 0.3 kg

Power Voltage: ±15 V ±5%

Maximum rated power: 11 VA

Consumption current (at each power voltage): Approx. (80 mA + output current)

Recommended fixing screw and tightening torque

M4 stainless steel screw × 4, 2.8 N·m

M5 stainless steel screw × 2, 3.7 N·m
