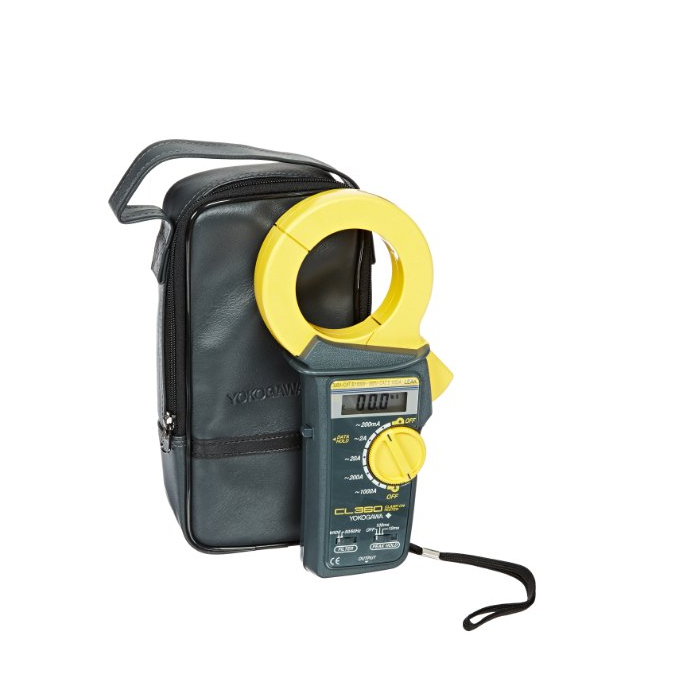

YOKOGAWA CL360 Clamp meter (AC/DC 1000A)

AC current: 200mA/2A/20A, 200A, 1000A(0～500A), 1000A(501～1000A); 1.0+2 (50/60Hz) at 200mA/2A/20A WIDE(40～1kHz)

AC output: 200mA/2A/20A(0～200mV), 200A(0～200mV), 1000A/(0～50mV/0～500A), 1000A/(50～100mV/501～1000A); 2.0 at 200mA/2A/20A(0～200mV) WIDE(40～1kHz)

DC output: 200mA/2A/20A(0～200mV), 200A(0～200mV), 1000A/(0～50mV/0～500A), 1000A/(50～100mV/501～1000A); 3.0 at 200mA/2A/20A(0～200mV) WIDE(40～1kHz)

Method of detectionMean value

Display: LCD(Digital display:1999 counts)

Response time: Approx. 1 second

Range switching:Range selection Auto or Manual

Data hold: On all range

Peak hold: On all range

Operating temperature and humidity :-10-50oC 80% RH or less (no condensation)

Effect of external magnetic field: 15mA or less in proximity to a 10mm-dia conductor carrying 100A

Effect of conductor position: 2% or less

Effect of residual current: 10mA or less in proximity to a 10mm-dia conductor carrying 100A

Safety standard:Conforms EN61010-1, EN61010-2-032

Circuit voltage:600Vrms or less

Withstanding voltage:4240V AC for 5 sec

Power supply:6F22(006P)9Vx1 or 6LR61x1

Batttery life:Approx. 60 hours (continuous)

Consumed current: Approx. 5mA

Diameter of measurable conductor: 68mm at maximum

Dimensions:Approx. 129(W)x248(H)x55(D)mm

Weight: Approx 570 g (including the battery)

Accessories:User's manual, batteries, carrying case(93031)
