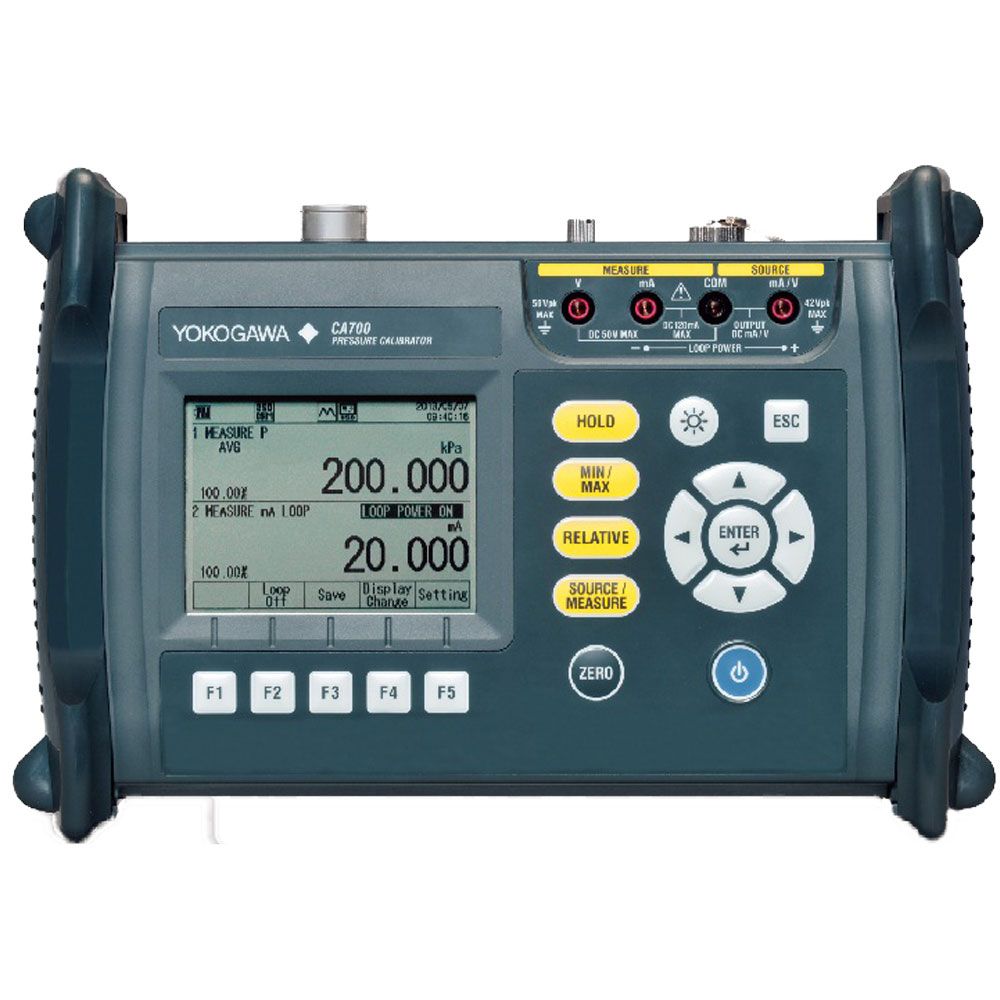

YOKOGAWA CA700–E–02 Pressure Calibrator (-80~1000kPa)

Measurement range:Positive pressure: 0 to 1000 kPa; Negative pressure: -80 to 0 kPa

Measurement display range: To 1200.00 kPa

Resolution: 0.01 kPa

Measurement accuracy(6 months after calibration. Tested after zero calibration): Positive pressure: ±(0.01% of reading + 0.04 kPa)/Negative pressure: ±(0.2% of reading + 0.08 kPa)

Measurement accuracy (1 year after calibration. Tested after zero calibration): Positive pressure: ±(0.01% of reading + 0.08 kPa)/Negative pressure: ±(0.2% of reading + 0.09 kPa)

Response time: 2.5 s or less

Allowable input: 2.7 kPa abs to 3000 kPa gauge

Internal volume: Approx. 6 cm3

Temperature coefficient: ±(0.001% of reading + 0.001% of full scale)/°C or less

Influence of positional setup: Zero-point drift ±0.3 kPa or less

Measurement fluid: Gas and liquid (non-corrosive, non-flammable, non-explosive, and non-toxic fluids)

Measurement fluid temperature: -10 to 50°C

Pressure sensor: Silicon resonant sensor

Pressure sensor element: Diaphragm

Pressure display units: kPa and other units(Pa, hPa, MPa, mbar, bar, atm, mmHg, inHg, gf/cm2, kgf/cm2, mmH2O@4°C, mmH2O@20°C, ftH2O@4°C, ftH2O@20°C, inH2O@4°C, inH2O@20°C, Torr, psi )

Input port: Rc 1/4 or 1/4 NPT female thread (selectable)

Measurement unit material: Diaphragm: Hastelloy C276 and input port: SUS316

Dimensions: Approx. 264 (W) x 188 (H) x 96 (D) mm, excluding protrusions

Weight: Approx. 2kg (including batteries)
