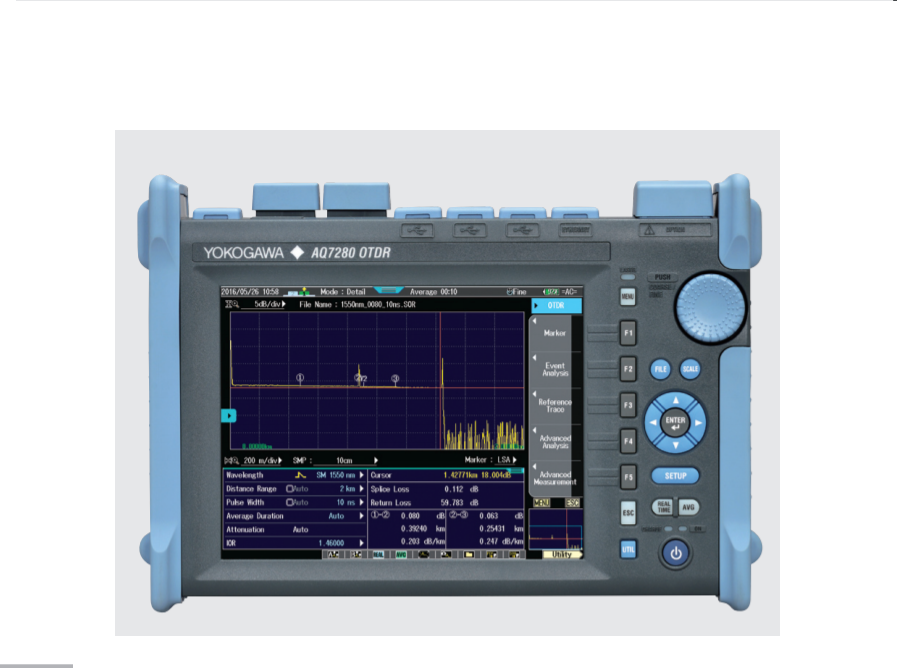

YOKOGAWA AQ7283J Modular Optical Time Domain Reflectometer

Wavelength (nm): 1310 ±25/1383 ±2/ 1550 ±25/1625 ±25

Number of optical port: 1

Applicable fiber: SM (ITU-T G.652)

Distance range (km): 0.2, 0.5, 1, 2, 5, 10, 20, 30, 50, 100, 200, 300, 400, 512

Pulse width (ns): 3, 10, 20, 30, 50, 100, 200, 300, 500, 1000, 2000, 5000, 10000, 20000

Event dead zone(m): 0.6

Attenuation dead zone(m): 3.5/4/4/4

Dynamic range (dB): 42/39/40/40

Optical connector: Universal Adapter SC, FC, LC, and SC Angled-PC

Laser class: Class 1M (1383/1550/1625 nm),Class 3R (1310 nm)

Display: 8.4-inch color TFT LCD (Resolution: 800 × 600, Multi-touch capacitive touchscreen)

Electrical interface: Unit interface × 1, Module interface × 1, USB 2.0 × 3 (TYPE A × 2, TYPE B (mini) × 1), Ethernet (10/100BASE-T, Option) × 1, SD card slot × 1

Remote control: USB TYPE B (mini), Ethernet (TCP/IP)

Internal storage: ≥1000 waveforms, External storage: USB memory, SD card

File format: Write: SOR, CSV, SET, BMP, JPG, CFG, PDF, Read: SOR, SET

Operating temperature: −10 to 50˚C (0 to 40°C when AC adapter is being used. 0 to 35˚C when the battery is be charged)

Storage temperature: −20 to 60˚C

Humidity: 0 to 90% RH (non-condensing)

Altitude: 4000 m

Power requirements: 100 to 240VAC, 50/60Hz (AC adapter)

Battery: Lithium-ion, Operating time: 10-15 hours, Recharge time:6 hours

Dimensions: Approx. 287 mm (W) × 210 mm (H) × 80 mm (D) (excluding projections)

Weight: Approx. 2.2 kg (including internal battery and protectors)
