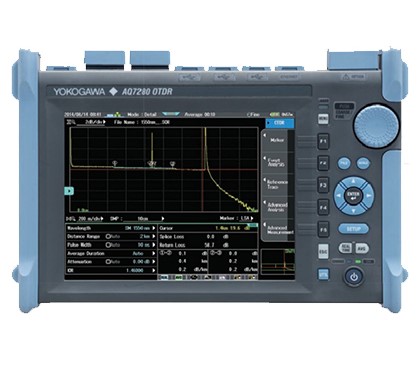

OTDR Yokogawa AQ7282A Optical fiber network test (Single Mode 1310,1550 nm , 512 km)

Wavelength (nm): 1310±25nm,1550±25nm ,

Applicable fiber:SM(Single Mode-ITU TG652)

Distance range: 0.2, 0.5, 1, 2, 5, 10, 20, 30, 50, 100, 200, 300, 400, 512 km

Pulse width: 3, 10, 20, 30, 50, 100, 200, 300, 500, 1000, 2000, 5000, 10000, 20000 ns

Level unit: dBm, mW, µW, nW Relative: Db

Accuracy: ±5%, ±0.5 d B

Optical connector:SC,FC

Output Power control:Normal/Low

Dynamic range: 38 d B

Dead zone : 3,5 / 4 m

Other Function ; Multi Fiber Project, Fault Locator, Work Completion Notice, File report, Auto event search, Pass/Fail judgment, Schedule Measurement (Option), Smart Mapper (Option)

Analysis Function: Multi Trace Analysis, Two-Way Trace Analysis, Difference Trace Analysis, Section Analysis, Macro Bending Analysis

Resolution:0,01

Memory and logging function: 10 to 25600 data,

Storage temperature: -20 to 60°C

Humidity::20 to 85% RH (no condensation)

Power requirements: 100 to 240 VAC, 50/60 Hz Run time: 6 hours, Recharge time: 5 hours

Dimensions: 287 (W) × 210 (H) × 80(D) mm,2,2 kg including Battery
