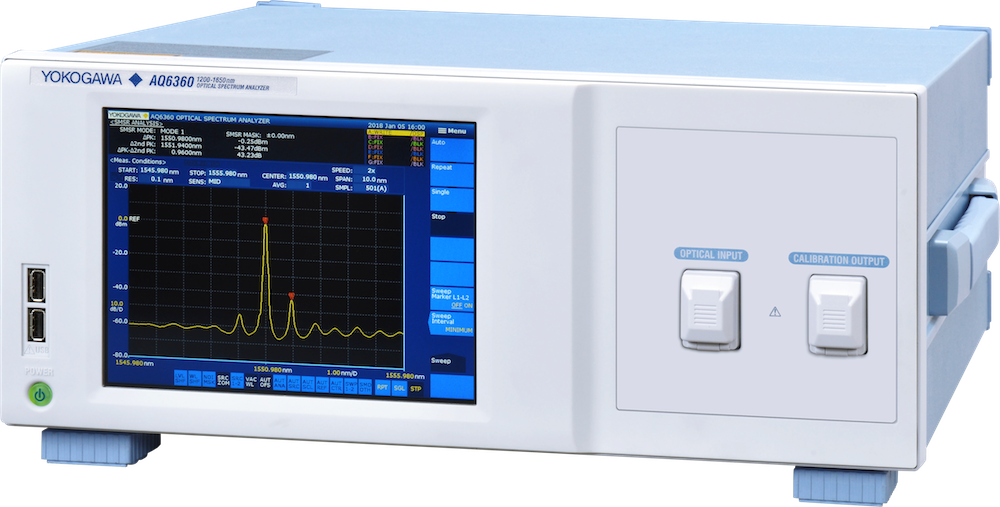

YOKOGAWA AQ6360 Telecom Production Optical Spectrum Analyzer (1200-1650nm)

Applicable fiber: SM (9.5/125 µm), GI (50/125 µm, 62.5/125 µm)

Wavelength range: 1200 to 1650 nm

Span: 1 0.1 to 450 nm (entire wavelength range), and 0 nm

Wavelength accuracy: ±0.02 nm (1520 to 1580 nm), ±0.04 nm (1580 to 1620 nm), ±0.10 nm (1200 to 1650 nm)

Wavelength linearity: ±0.02 nm (1520 to 1580 nm, 1580 to 1620 nm)

Wavelength repeatability: ±0.01 nm (1 min.)

Wavelength resolution setting: 0.1, 0.2, 0.5, 1 and 2 nm

Wavelength resolution bandwidth accuracy: ±5%

Minimum sampling resolution: 0.001 nm

Number of sampling points: 101 to 50001, AUTO

Level sensitivity setting: NORM_HOLD, NORM_AUTO, NORMAL, MID,

HIGH1, and HIGH2

Level sensitivity: −80 dBm (1300 to 1620 nm, sensitivity: HIGH2,

resolution: 0.1 nm)

Maximum input power: +20 dBm (Input power per set wavelength resolution)

Maximum safe input power: +25 dBm (Total input power)

Level accuracy: ±0.5 dB (1310/1550 nm, −20 dBm, sensitivity: MID,

HIGH1-2)

Level linearity: ±0.1 dB (Input level: −50 to +10 dBm, sensitivity:

MID, HIGH1-2)

Level flatness: ±0.2 dB (1520 to 1580 nm, 1580 to 1620 nm)

Polarization dependence: ±0.1 dB (1550 nm)

Dynamic range: 55 dB (Peak ±0.4 nm), 40 dB (Peak ±0.2 nm) (Resolution 0.1 nm)

Optical return loss: 35 dB (Typ., with angled-PC connector)

Optical input connector: FC or SC

Built-in calibration light source (option): Wavelength reference source (For wavelength calibration)

Sweep time: NORM_AUTO: 0.2 s, NORMAL: 0.5 s, MID: 1 s, HIGH1: 2.5 s, HIGH2: 10 s

Warm-up time: Minimum 1 hour (After warm-up, the wavelength alibration is required.)

Electrical interface: GP-IB, Ethernet, USB, SVGA output

Remote control: GP-IB, Ethernet (TCP/IP), AQ6317 series compatible commands (IEEE488.1) and IEEE488.2

Data storage: Internal storage: 512 MBytes, external storage: USB storage (memory/HDD), file types: CSV (text),Binary, BMP, TIFF

Display: 8.4-inch color LCD (Touchscreen, resolution: 800 × 600 pixels)

Power requirements: 100 to 240 V AC, 50/60 Hz, approx. 100 VA

Environmental conditions: Performance guarantee temperature: +18 to +28°C,

Operating temperature: +5 to +35°C, Storage temperature: −10 to +50°C, Humidity: 20 to 80%RH(no condensation)

Dimensions: Approx. 426 (W) × 177 (H) × 459 (D) mm (excluding

protector and handle)

Weight: Approx. 15.5 kg
