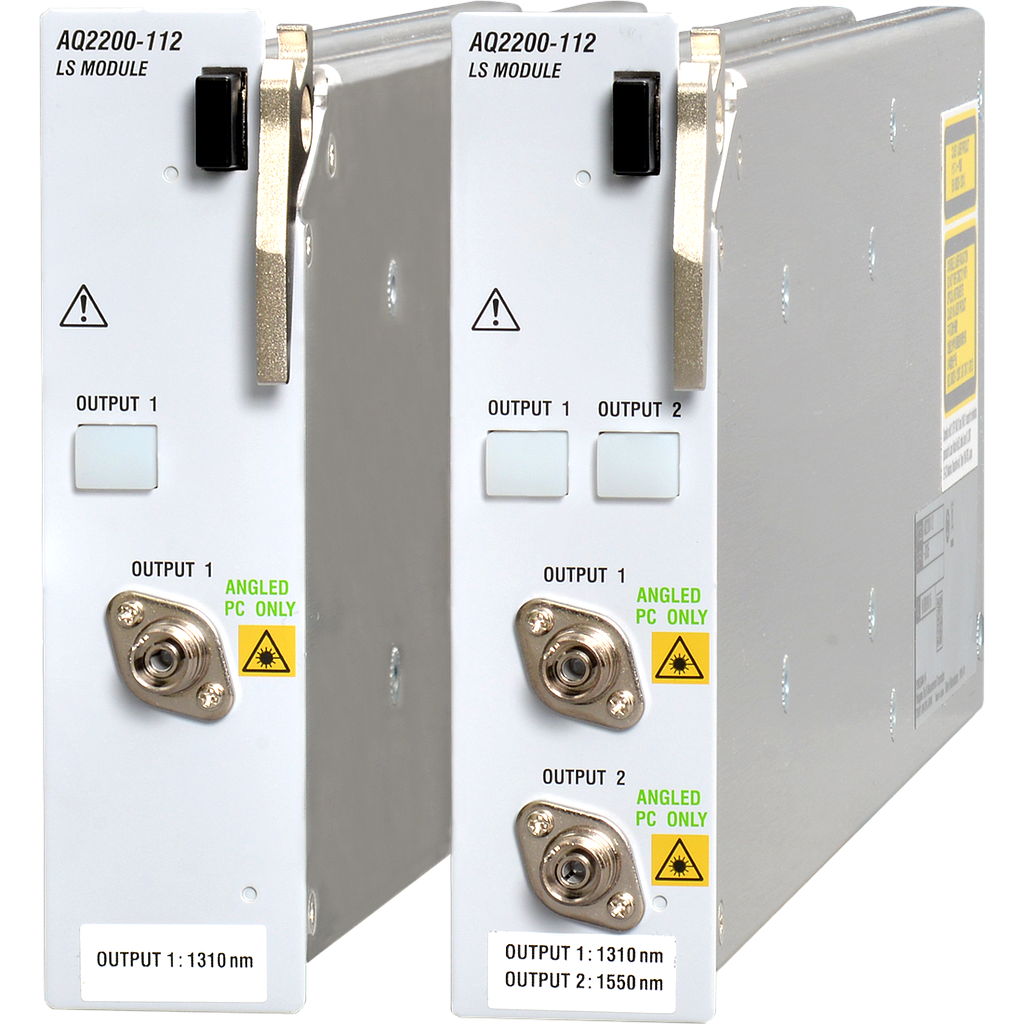

Yokogawa AQ2200-112 LS Module (DFB, 1/2 channels)

Number of channel: 1 or 2 channels

Device type: DFB-LD

Center Wavelength: 1310 nm ±5 nm, 1550 nm ±5 nm, 1625 nm ±5 nm, 1650 nm ±5 nm

Optical output level: +10 dBm or more

Output level stability (5 minutes): ±0.005 dB

Spectral linewidth: Narrow: 10 MHz; Wide: 100 MHz

SMSR: 35 dB or more

RIN: -135 dB/Hz

Attenuation range: 6 dB (resolution 0.01 dB)

Fiber type: SMF (ITU-T G.652)

Optical connector: FC/Angled PC

Diemnsions: Approx. 31(W) ×117(H) × 321.5(D) mm, 1-slot wide (excluding protrusions)

Weight: Approx. 0.8 kg
