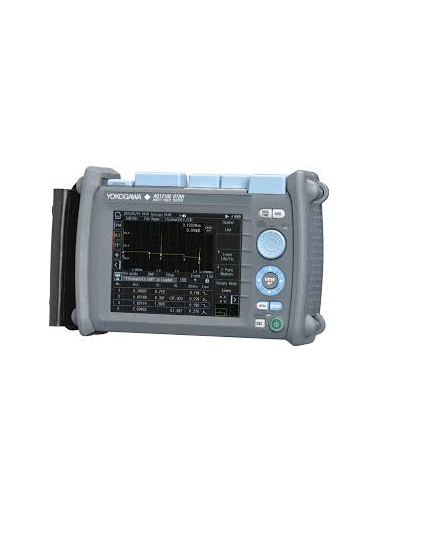

Yokogawa AQ1216F Optical Time Domain Reflectometer

Wavelength(nm): 1310 ±25/1550 ±25, 1625 ±25

Number of optical ports: 2 (Port 2: 1650 nm, including a filter)

Applicable fiber: SM (ITU-T G.652)

Distance range (km): 0.1 to 512

Pulse width (ns): 3 to 20000

Event dead zone (m): 0.5

Attenuation dead zone (m): 2.5

PON dead zone (m): 30

Dynamic range (dB): 42/40, 40

Loss measurement accuracy: ±0.03 dB/dB

Optical return loss measurement accuracy: ±2 dB

Number of sampling points: max. 256000

Sampling resolution: min. 2 cm

Minimum readout resolution: Horizontal axis: 1 cm, vertical axis: 0.001 dB

Distance unit: km, mile, kft

Distance measurement accuracy: ± (0.75 m + measured distance × 2 × 10−5 + sampling resolution)

Group refractive index: 1.30000 to 1.79999 (0.00001 intervals)

Optical connector: SC, FC, LC, or SC angled-PC

Laser class: Class 1M (IEC 60825-1: 2007, GB 7247.1-2012), Class 1 (EN 60825-1: 2014)

Display: 5.7-inch color TFT LCD (resolution: 640 × 480, multi-touch capacitive touchscreen)

Interfaces: USB 2.0 type-A × 2: USB mass storage device, fiber inspection probe, USB dongle (LAN, WLAN), USB 2.0 type-C × 1: DC power supply, storage, remote control

Data storage: Storage: Internal: ≥1000 traces, external: USB storage; File format Write: SOR, CSV, SET, SMP, BMP, JPG, report/ Read: SOR, SET, SMP

Power requirements: USB power supply (Type-C), DC 5 V ±5%, max. 3 A

Battery: Type: Lithium ion polymer/ Operation time: 10 hours or more (Telcordia GR-196-CORE Issue 2, September 2010)/ Recharge time: 5 hours (power-off state)

Environmental conditions: Operating temperature: −10 to 50˚C (10 to 35˚C when charging the battery), operating humidity: 5 to 90%RH (noncondensing), storage temperature: −20 to 60˚C, storage humidity: 0 to 90%RH (non-condensing), altitude: 4000 m, dust and drip protection: IP51 equivalent

Dimensions: Approx. 210 mm (W) × 148 mm (H) × 69 mm (D) (excluding projections)

Weight: Approx. 1 kg (including battery)
