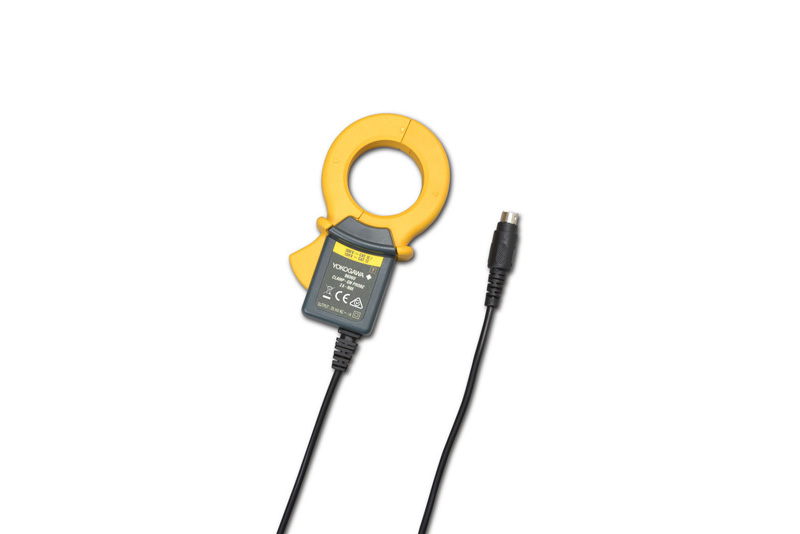

Yokogawa 96060 Clamp-on probe (2A)

Measureable conductor size:Max. φ40 mm

Measuring range:AC 0 to 2 Arms

Output voltage:AC 0 to 50 mVrms (25 mV/A)

Accuracy (sine wave input):Band width:±1.0%rdg ±0.4 mV (1 kHz to 3.5 kHz)

Temperature & humidity range (guaranteed accuracy):23 ±5°C, 85%RH or less(no ondensation)

Rated voltage between circuit and ground:AC 300 Vrms Max

Operating temperature & humidity range:0 to 50°C, 85%RH or less (no ondensation)

Storage temperature & humidity range:-20 to 60°C, 90%RH or less (no ondensation)

Temperature coefficient:0.05% f.s./°C (0 to 50°C)

Maximum allowable input:AC 60 Arms continuous (50/60Hz)

Influence of the conductor location:Within ±0.5% rdg (0.2 to 2 A, 45 Hz to 1 kHz)

Influence of the external magnetic field:4 mA equivalence or less (400 A/m, 50/60Hz) ±30 ppm or less (the current value of the near conductor:100 A)

Output impedance:Approx. 47 Ω

Withstand voltage:AC 3.7 kVrms / 1 minute Between jaw and case, case and output terminal, output terminal and jaw,

Recommended calibration period:1 year

Environmental condition:Altitude up to 2000 m, in-door use

Dimension: 70(W)×120(H)×25(D) mm (excluding projections)

Cable length:Approx.3m

Output terminal:MINI DIN 6PIN

Weight:Approx.230g
